Step 30/140 More guns.

Anoth of the 15cm guns is added, plus a small circuit board that will later combine all those cables from the guns.

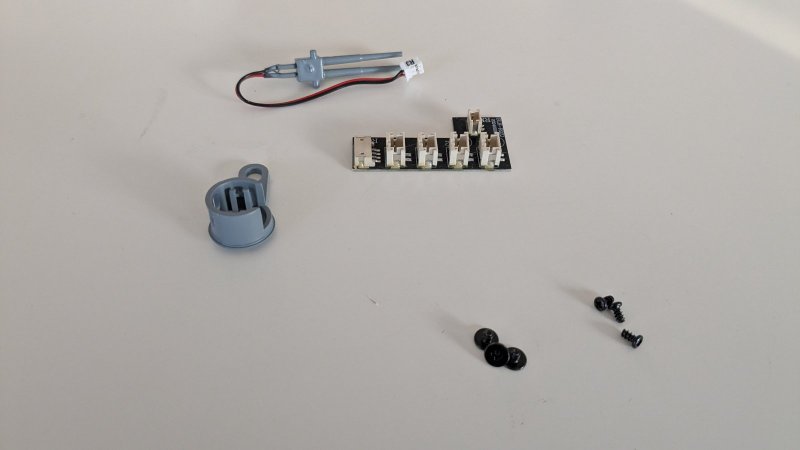

Step 30 parts:

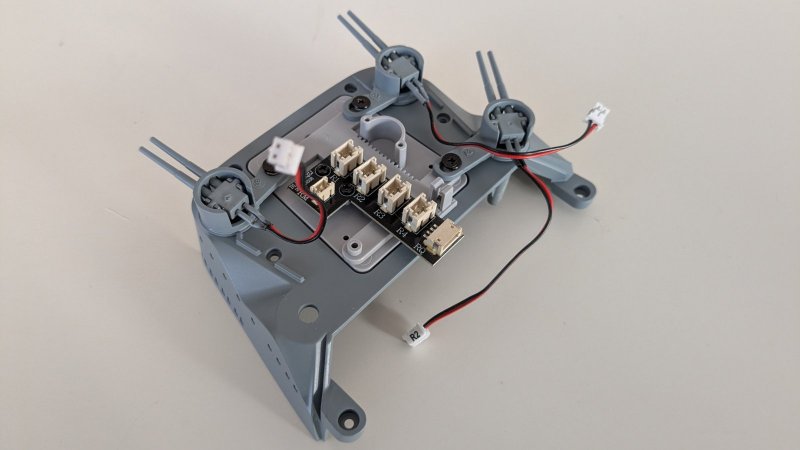

Step 30 completed:


Step 30 hull test

[nönöbär]

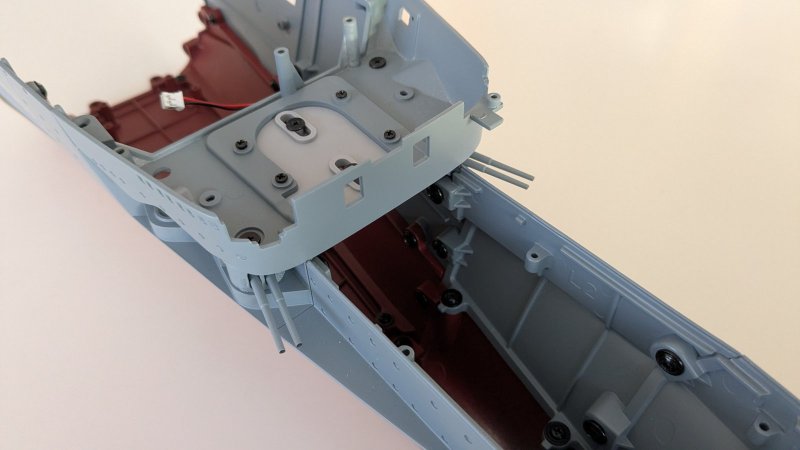

Step 31/140 The final constructions steps for the forward 15 cm guns.

The last of the guns is added and the little motor for the moving mechanism is added. Finally, all cables are put into place and the moving and "fireing" guns can be tested.

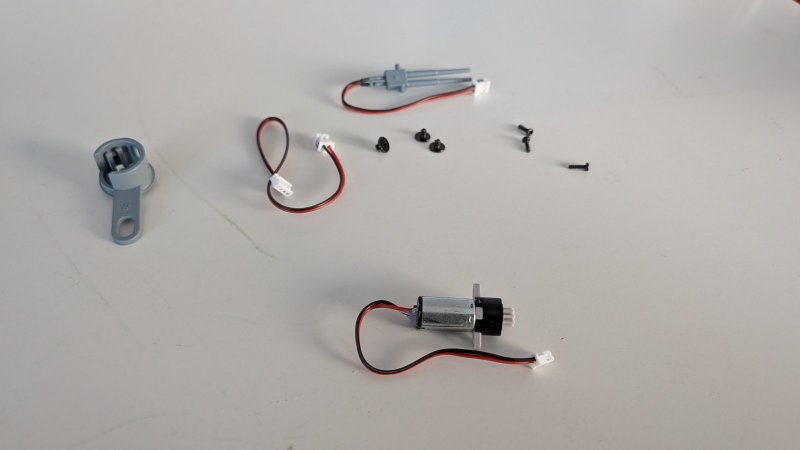

Step 31 parts:

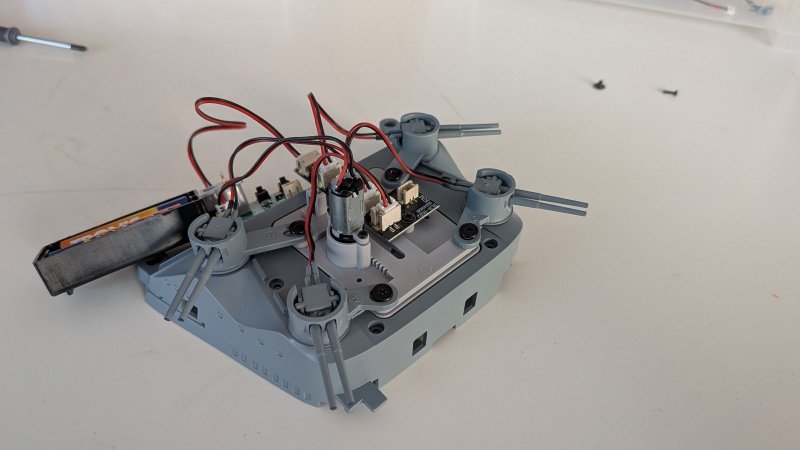

Step 31 completed:

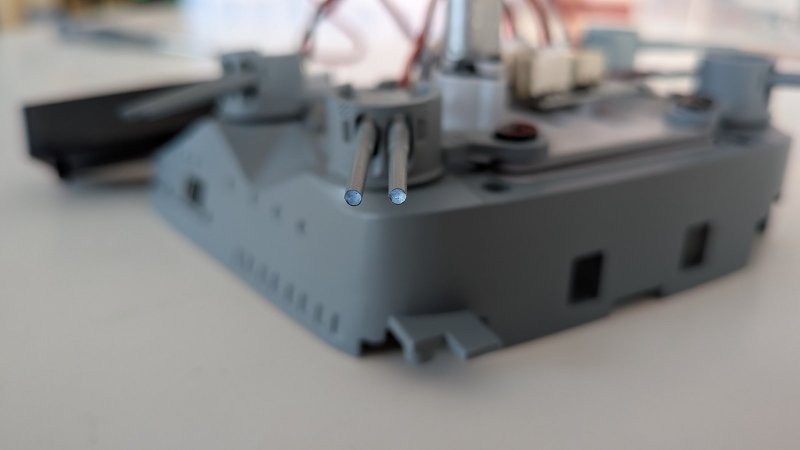

Step 31 gun "fireing":

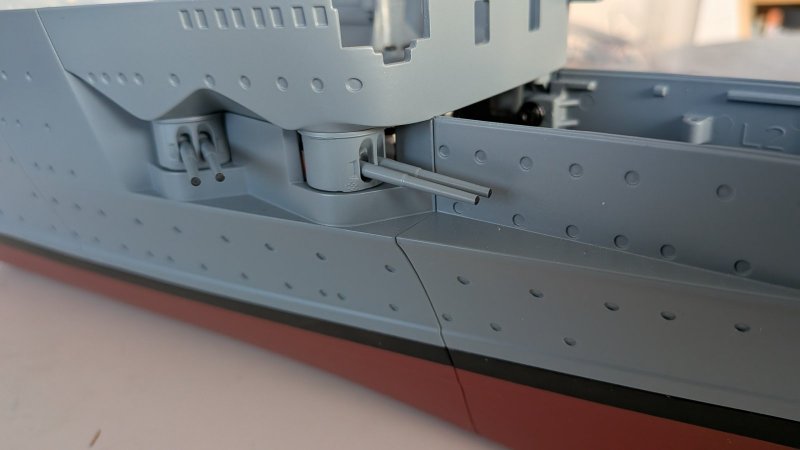

Step 31 hull test


The gun moving mechanism in action:

As far as I can see now, the next steps will be "just" adding some more parts to the hull.

[PR19_Kit]

That motor may need a bit of added support before you build the rest of the hull around it. It's moving quite a bit as the guns operate.

[Old Wombat]

That motor may need a bit of added support before you build the rest of the hull around it. It's moving quite a bit as the guns operate.

Unless the support's in the hull structure above ... Oops! Sorry! ... below the gun deck.

[nönöbär]

The screws of the motor were not attached tightly enough, now it is not moving around anymore (well, the guns still do)

[PR19_Kit]

Ah, that's OK then.

[nönöbär]

Step 32/140 The hull continues

The next four steps will be mostly hull parts. So many srews to add. This step will start with the port underwater extension.

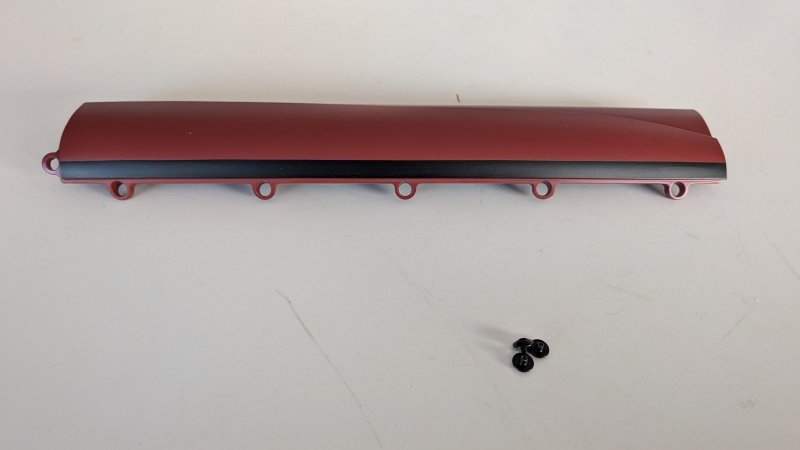

Step 32 parts:



Step 32 completed:

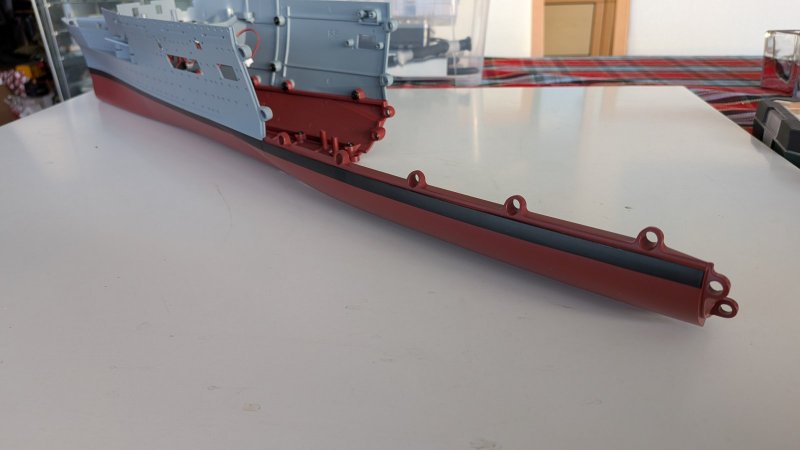

With this part, the hull is now 70cm long, this is just a bit over half the final size.

[PR19_Kit]

That's going to take up a LOT of shelf space!

[nönöbär]

That's going to take up a LOT of shelf space!

Yes, and I already know where I will place it when its completed. But the GF does not know yet. This might be a tough battler, harder than any naval battle in WW2

[NARSES2]

Yes, and I already know where I will place it when its completed. But the GF does not know yet. This might be a tough battler, harder than any naval battle in WW2



[nönöbär]

Step 33/140 More work on the hull

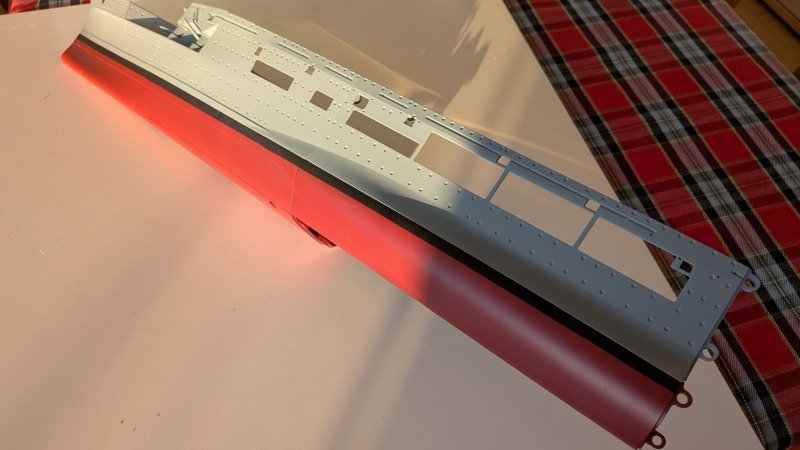

The big openings will later house boats, their boat davids will be movable. But now its putting the hull together, this time, it was easy going as there was enough working space to fasten the screws.

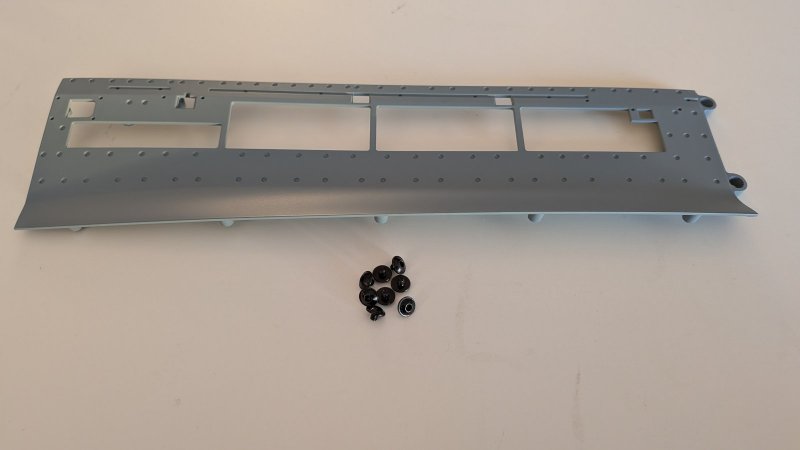

Step 33 parts:



Step 33 completed:
