Re: Double Pancake
« Reply #30 on: March 23, 2020, 05:14:55 am »
Oh sure, you could, but it'd balance out the loads on the connecting shaft if you just shut down one half of each engine pair.
Any aircraft can be improved by fitting longer wings, and/or a longer fuselage

...and I'm not a closeted 'Take That' fan, I'm a REAL fan! :)

Regards
Kit

Offline joncarrfarrelly

  • Bertie Bassett
  • What-IF SIG
  • Needs A Life Outside What-If
  • *****
  • Posts: 7462
  • Turn that Gila-copter down!
Re: Double Pancake
« Reply #31 on: March 23, 2020, 10:28:55 pm »
The cross shaft is going behind the front seat and in front of the rear instrument panel.

And as the production F5Us had turbine engines they didn't need such large oil tanks……………  ;D

So the rear seat will be where the fuel tank is on the XF5U-1?

Quote
But as the engines are the dreaded T40s (hardly any aeroplane that used them was trouble free....) one half of each engine could be shut down in the cruise, a bit like a Gannet.
:o
Living on the edge.  ;D

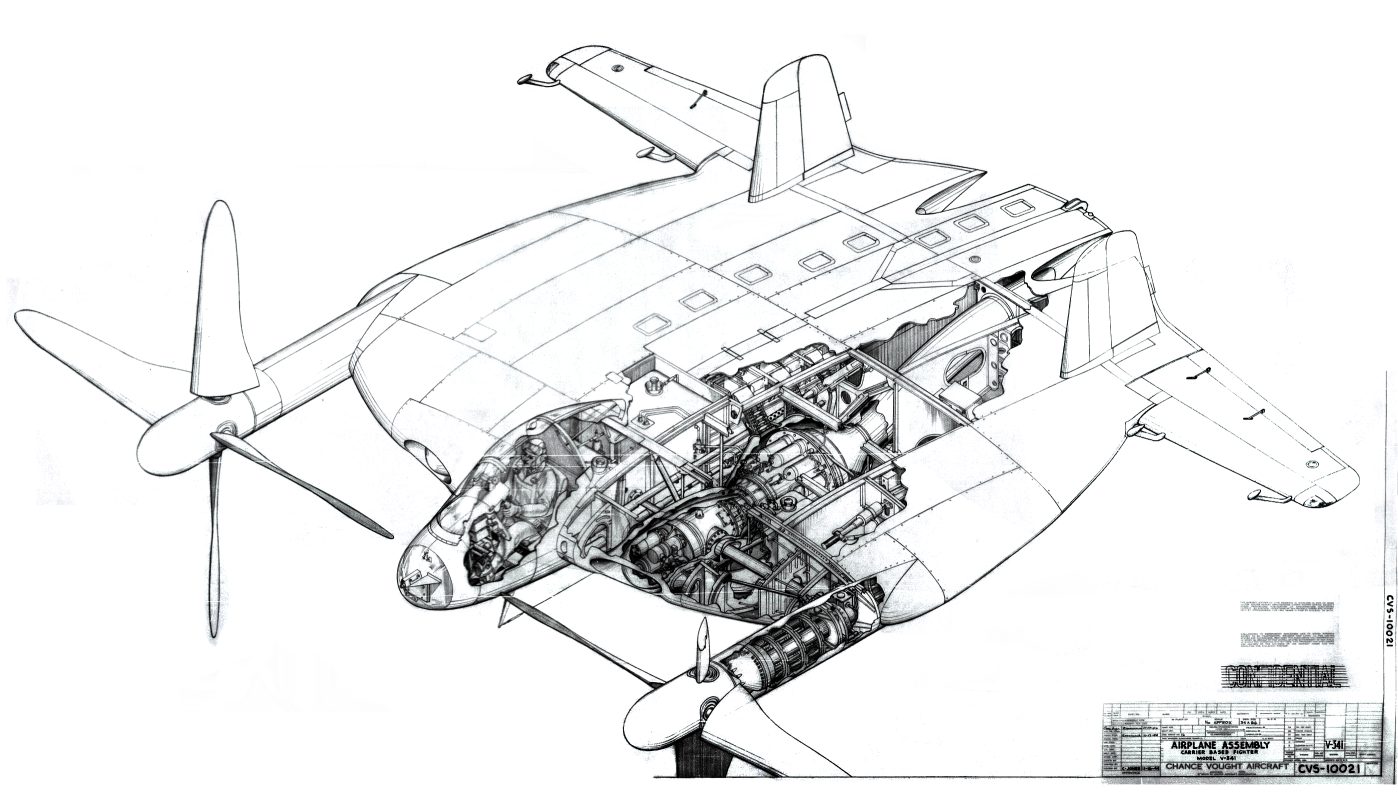

Cutaway of the proposed Allison turbine version.



"Evil our grandsires were, our fathers worse;
And we, till now unmatched in ill,
Must leave successors more corrupted still."
Horace, 65BC - 8BC. Marsh translation.

Online PR19_Kit

  • Closeted Take That fan
  • What-IF SIG
  • Needs A Life Outside What-If
  • *****
  • Posts: 32091
  • Whiffing since the 70s
Re: Double Pancake
« Reply #32 on: March 24, 2020, 05:30:39 am »

So the rear seat will be where the fuel tank is on the XF5U-1?


That's why it's going to have a couple of under wing tanks...……...


Living on the edge.  ;D


Absolutely!

That cutaway is VERY interesting, I didn't actually know they planned to make a turboprop version, but it was a logical development. Which engine is that anyway? It doesn't look much like the T-38, which was half the dreaded T-40, but I can't find another Allison engine of the period.

It's interesting that the exhausts go right to the tail, and they seem to negate the use of the pitch control flap things that the piston engined version had.
Any aircraft can be improved by fitting longer wings, and/or a longer fuselage

...and I'm not a closeted 'Take That' fan, I'm a REAL fan! :)

Regards
Kit

Online Weaver

  • I'm either dumb or evil - you decide.....
  • What-IF SIG
  • Needs A Life Outside What-If
  • *****
  • Posts: 17505
  • Has a life outside What-If that is also What If
Re: Double Pancake
« Reply #33 on: March 24, 2020, 06:16:02 am »
I'm tempted to suggest kippering the whole thing to make it wider, fitting longer cross-shafts, and then using a side-by-side two-seat cockpit.

Probably too late now though.
Neophyte: Is Eris true?
Malaclypse the Younger: Everything is true.
Neo: Even false things?
MtY: Even false things are true.
Neo: How can that be?
MtY: I don't know man, I didn't do it.
Principia Discordia

Twitter: @hws5mp
www.minds.com: @HaroldWeaverSmith

Offline rickshaw

  • Needs A Life Outside What-If
  • *****
  • Posts: 10116
Re: Double Pancake
« Reply #34 on: March 24, 2020, 06:22:45 am »
Why not simply fit a longer nose to accept another cockpit in front of the existing one?
How to reduce carbon emissions - Tip #1 - Walk to the Bar for drinks.

Online PR19_Kit

  • Closeted Take That fan
  • What-IF SIG
  • Needs A Life Outside What-If
  • *****
  • Posts: 32091
  • Whiffing since the 70s
Re: Double Pancake
« Reply #35 on: March 24, 2020, 06:47:01 am »

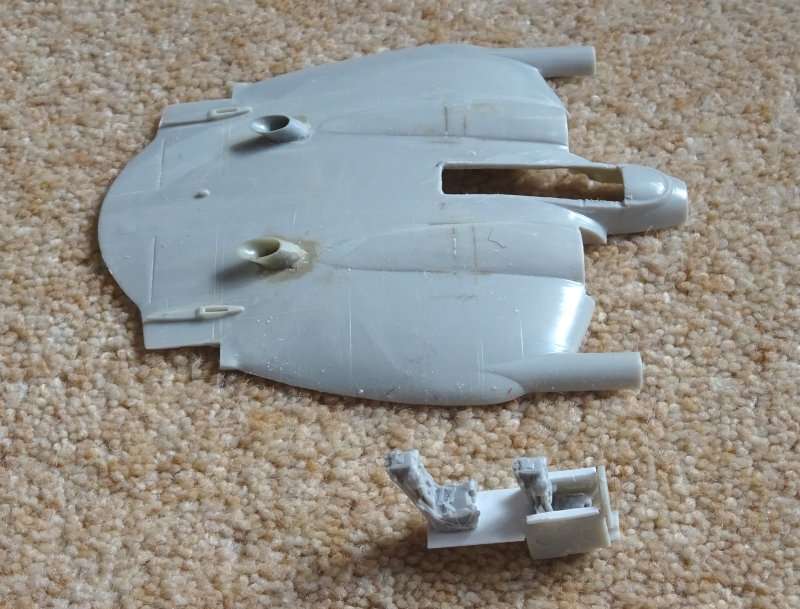

As H said, it's too late now. I've already cut away large chunks of the 'fuselage' top decking, and it's looking quite good.

But then I would say that, wouldn't I?  ;D ;)
Any aircraft can be improved by fitting longer wings, and/or a longer fuselage

...and I'm not a closeted 'Take That' fan, I'm a REAL fan! :)

Regards
Kit

Offline joncarrfarrelly

  • Bertie Bassett
  • What-IF SIG
  • Needs A Life Outside What-If
  • *****
  • Posts: 7462
  • Turn that Gila-copter down!
Re: Double Pancake
« Reply #36 on: March 24, 2020, 09:43:33 pm »
That cutaway is VERY interesting, I didn't actually know they planned to make a turboprop version, but it was a logical development. Which engine is that anyway? It doesn't look much like the T-38, which was half the dreaded T-40, but I can't find another Allison engine of the period.

Here's what Bill Pearce postulates:
"While it is not entirely clear which engine was selected, the engine depicted in a technical drawing closely
resembles the 2,200 hp (1,641 kW) General Electric T31 (TG-100) turboprop."

From his entry on the Flapjack:
https://oldmachinepress.com/2017/02/05/vought-xf5u-flying-flapjack/
"Evil our grandsires were, our fathers worse;
And we, till now unmatched in ill,
Must leave successors more corrupted still."
Horace, 65BC - 8BC. Marsh translation.

Online Weaver

  • I'm either dumb or evil - you decide.....
  • What-IF SIG
  • Needs A Life Outside What-If
  • *****
  • Posts: 17505
  • Has a life outside What-If that is also What If
Re: Double Pancake
« Reply #37 on: March 25, 2020, 06:25:26 am »
Why not simply fit a longer nose to accept another cockpit in front of the existing one?

I'm not sure, but I THINK the clearance between the two props is less than the width of the cockpit proper or at least so close to it that stretching it would be dangerous. They're about level with a point where the taper to the nose has already begun.



Image from here: https://forum.warthunder.com/index.php?/topic/185928-xf5u-flying-flapjack/

« Last Edit: March 25, 2020, 06:27:48 am by Weaver »
Neophyte: Is Eris true?
Malaclypse the Younger: Everything is true.
Neo: Even false things?
MtY: Even false things are true.
Neo: How can that be?
MtY: I don't know man, I didn't do it.
Principia Discordia

Twitter: @hws5mp
www.minds.com: @HaroldWeaverSmith

Offline kitnut617

  • That's got his tum rumbling already just by the sound of it.
  • Needs A Life Outside What-If
  • *****
  • Posts: 12121
Re: Double Pancake
« Reply #38 on: March 25, 2020, 06:53:57 am »
As H said, it's too late now. I've already cut away large chunks of the 'fuselage' top decking, and it's looking quite good.

But then I would say that, wouldn't I?  ;D ;)

But you could have the rear cockpit sitting on top of all the equipment that's there giving the instructor the best possible view of what's happening, sort of a precursor to the modern day trainer arrangement.
If I'm not building models, I'm out riding my dirtbike

Online PR19_Kit

  • Closeted Take That fan
  • What-IF SIG
  • Needs A Life Outside What-If
  • *****
  • Posts: 32091
  • Whiffing since the 70s
Re: Double Pancake
« Reply #39 on: March 25, 2020, 07:12:49 am »
I've already had both those ideas in mind, and if I can get the sawn down Jaguar canopy to work, the rear seat will be higher.

I'm thinking of chopping off the tips of the props too, as most turboprops of the era, and all aircraft that flew with the T40 engine, had clipped prop blades. Unfortunately Mt. Zimmerman died some years back so I can't ask him if that would have negative effects on the vortex production.  ;)
Any aircraft can be improved by fitting longer wings, and/or a longer fuselage

...and I'm not a closeted 'Take That' fan, I'm a REAL fan! :)

Regards
Kit

Offline joncarrfarrelly

  • Bertie Bassett
  • What-IF SIG
  • Needs A Life Outside What-If
  • *****
  • Posts: 7462
  • Turn that Gila-copter down!
Re: Double Pancake
« Reply #40 on: March 25, 2020, 10:16:01 am »

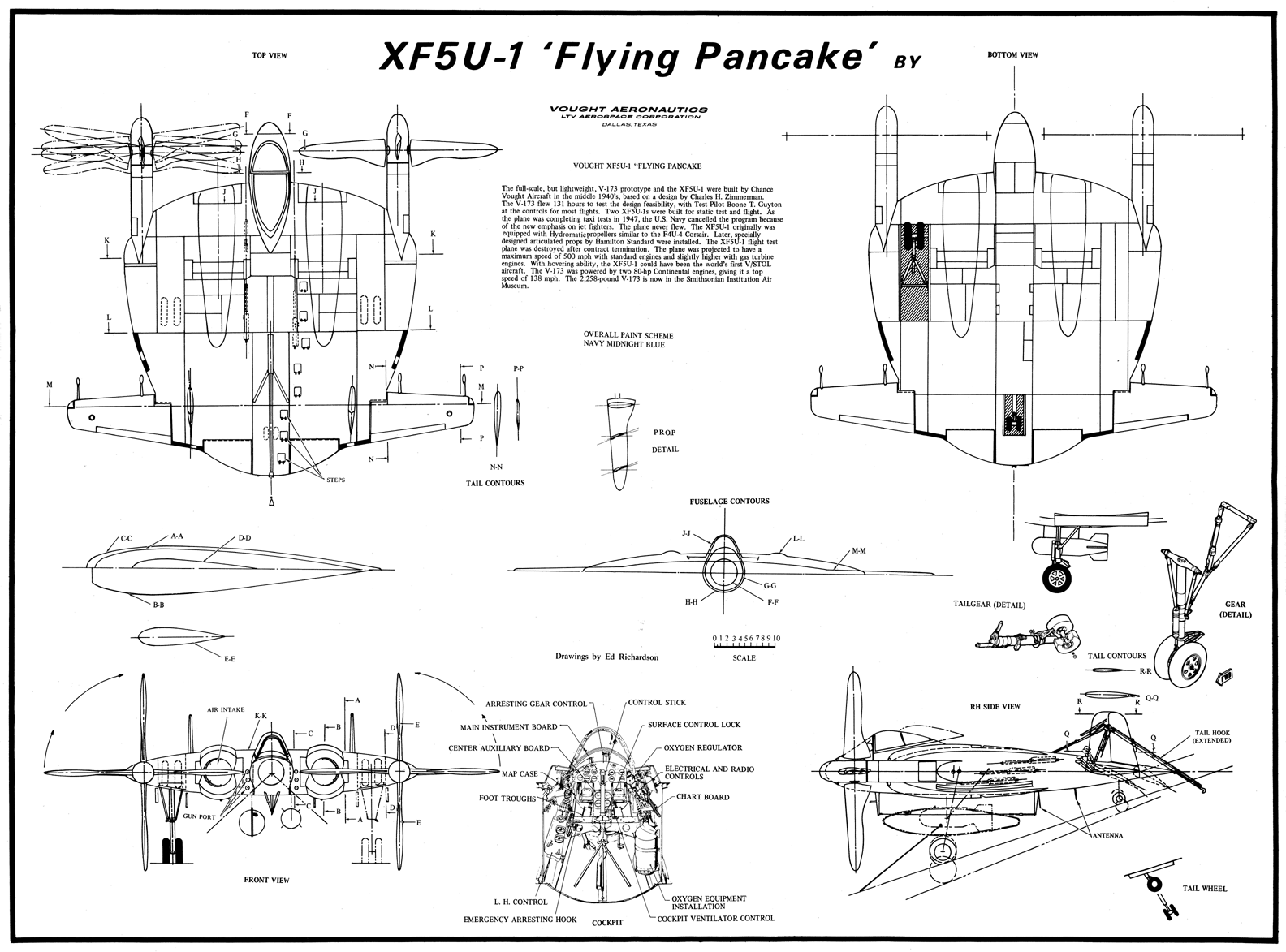

Clearer version of the Vought drawing of the XF5U-1, from the Vought Heritage site (click for full size).
More Vought product drawings here: http://www.vought.org/photo/html/pdown.html
"Evil our grandsires were, our fathers worse;
And we, till now unmatched in ill,
Must leave successors more corrupted still."
Horace, 65BC - 8BC. Marsh translation.

Offline joncarrfarrelly

  • Bertie Bassett
  • What-IF SIG
  • Needs A Life Outside What-If
  • *****
  • Posts: 7462
  • Turn that Gila-copter down!
Re: Double Pancake
« Reply #41 on: March 25, 2020, 10:31:37 am »
I'm thinking of chopping off the tips of the props too, as most turboprops of the era, and all aircraft that flew with the T40 engine, had clipped prop blades. Unfortunately Mt. Zimmerman died some years back so I can't ask him if that would have negative effects on the vortex production.  ;)

While they look like four-bladed props, in reality the flapping props are each a
pair of two-bladed teetering props mounted one in front of the other. The teetering action
is like that of a Bell helicopter rotor assembly. The design was required to avoid vibration
caused by unsymmetrical airflow and to resist heavy blade loads at high angles of attack.
Cutting off the tips may screw with that.


"Evil our grandsires were, our fathers worse;
And we, till now unmatched in ill,
Must leave successors more corrupted still."
Horace, 65BC - 8BC. Marsh translation.

Offline kitnut617

  • That's got his tum rumbling already just by the sound of it.
  • Needs A Life Outside What-If
  • *****
  • Posts: 12121
Re: Double Pancake
« Reply #42 on: March 25, 2020, 11:47:42 am »
I've already had both those ideas in mind, and if I can get the sawn down Jaguar canopy to work, the rear seat will be higher.

What about a Hawk or Tucano canopy ---
If I'm not building models, I'm out riding my dirtbike

Online PR19_Kit

  • Closeted Take That fan
  • What-IF SIG
  • Needs A Life Outside What-If
  • *****
  • Posts: 32091
  • Whiffing since the 70s
Re: Double Pancake
« Reply #43 on: March 25, 2020, 11:55:31 am »

Cutting off the tips may screw with that.


That's why I wanted to talk to Zimmerman.  ;D



What about a Hawk or Tucano canopy ---


Maybe, but I had the Jag canopy from a crunched FROG kit already.
