NöNöBärs's What-If Flugwerft (WIP: Ukranian Panavia Tornado)

[nönöbär]

The next model will be a more modern one.

The Boeing/Kawasaki Type 85 Mōko - "Ferocious Tiger".  Inspired by the Boeing Skyfox, this will be a light ground attack aircraft for the JASDF.

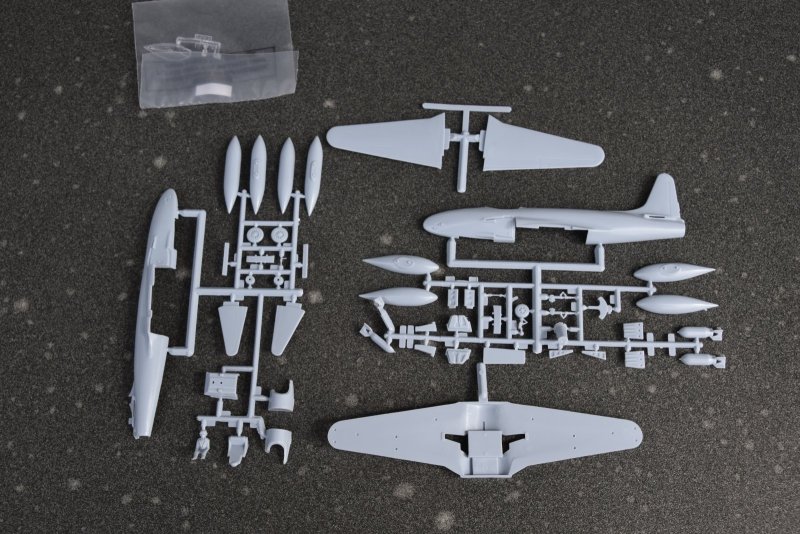

The model to use is an old (but re-boxed) Airfix F80 kit:





But it will be quite modified. To start with the elevators have to be moved to another location:



And work on the cockpit started

[nönöbär]

Making the new location for the elevators




As the Mōko will by quite tail heavy, add some weight in the nose. Hope this is enough.



Testing if everything will fit together

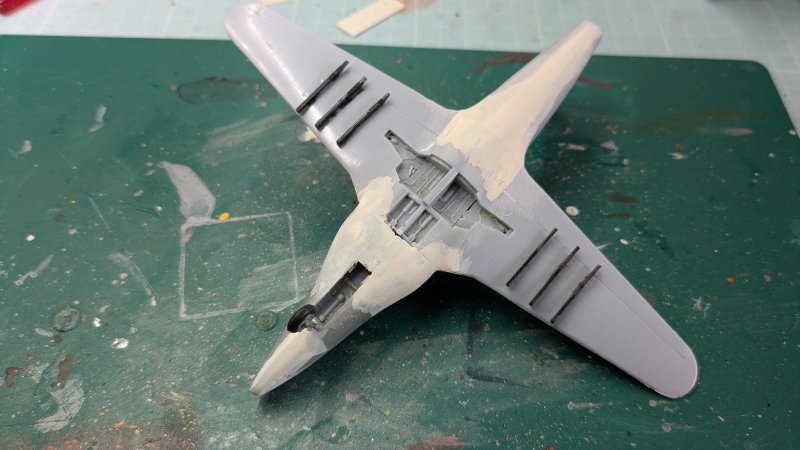

As the Type 85 Mōko will be a ground attack aircraft, as some pylons to the wings so some armament can be added.

[NARSES2]

Coming along nicely

[kerick]

This will be fun to watch!
I've thought at times about a conversion like the Skyfox but as a single seater. Where will you get the engines?

[nönöbär]

This will be fun to watch!
I've thought at times about a conversion like the Skyfox but as a single seater. Where will you get the engines?

The engines will be 3D printed. I am currently looking at various 3D models of aircraft I have if there is somethng I can "reuse".

[kerick]

Here's a quote from Wikipedia.

The two TFE731-3A turbofans that powered the Skyfox together weighed 17 per cent less than the single J33-A-35 turbojet of the T-33, while producing 60 percent more thrust and consuming 45 percent less fuel.

My understanding was that the engines and cowlings were taken straight off a biz jet.

[Rick Lowe]

You could possibly use the tubes from ballpoint pens? Or large-diameter bombs.
Need some blade faces maybe, but the basis is there.

[nönöbär]

Keep in mind that the Type 85 Mōko is not strictly a Skyfox, but inspired by it.
For its special operation where it is primary designed for, it will need osme very powerful engines. But more of this when the backstory for it is completed....

Anyway, first tests look with the engins look not too bad, pics will follow when I am back form vacation.

[nönöbär]

After a short vacation, my engineer continues to work on the Type 85.

A test print of a engine:

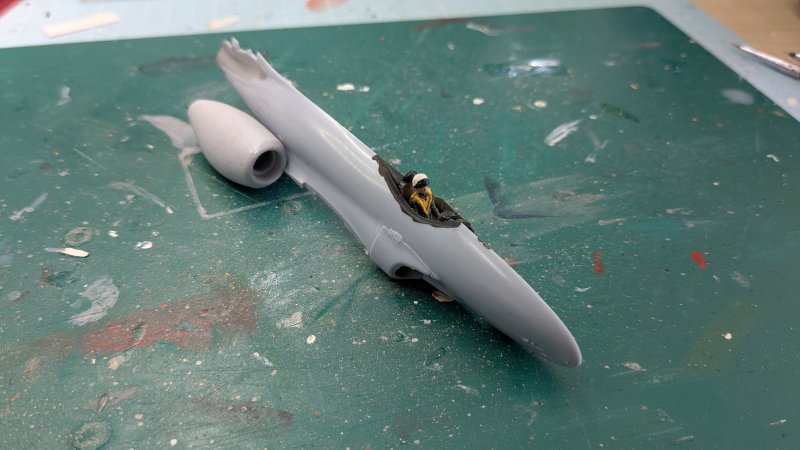

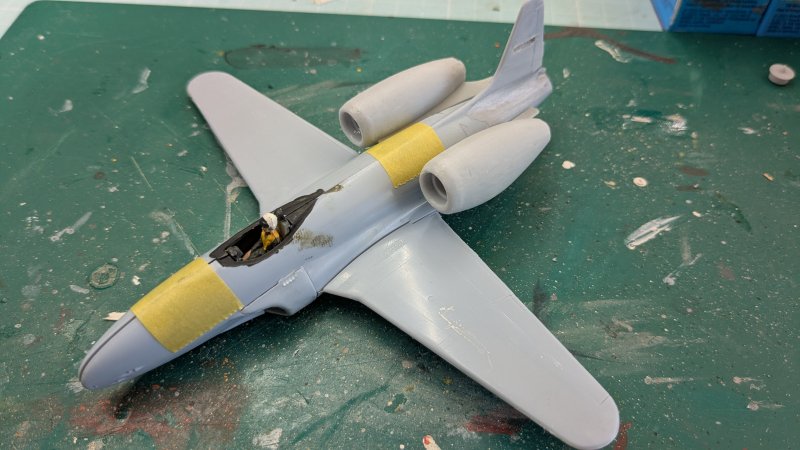

A placement test for fuselage, wings and engines. The engines have to be adjusted a bit to fit better.

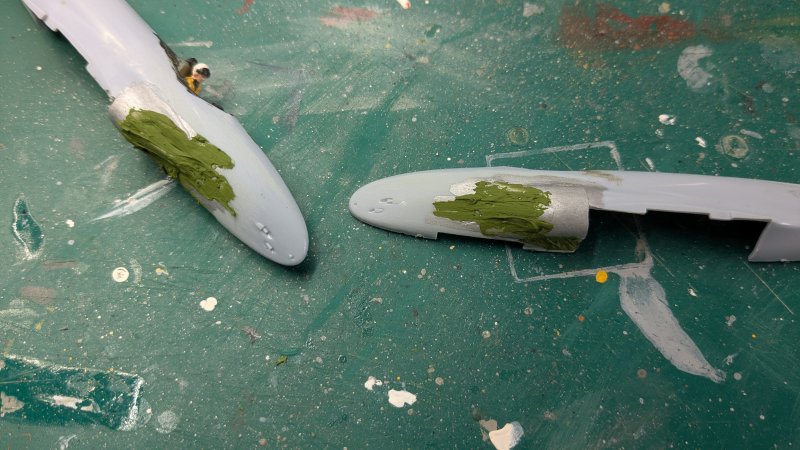

The original air intakes have to be closed, so putty&sanding is required

[NARSES2]

Did your engineer have a good vacation ?

[nönöbär]

Did your engineer have a good vacation ?

She had. And talked a lot about new ideas for other models. Some sounded quite strange, really What-If like....

[NARSES2]

Did your engineer have a good vacation ?

She had. And talked a lot about new ideas for other models. Some sounded quite strange, really What-If like....



[su27rules]



[Rick Lowe]



[nönöbär]

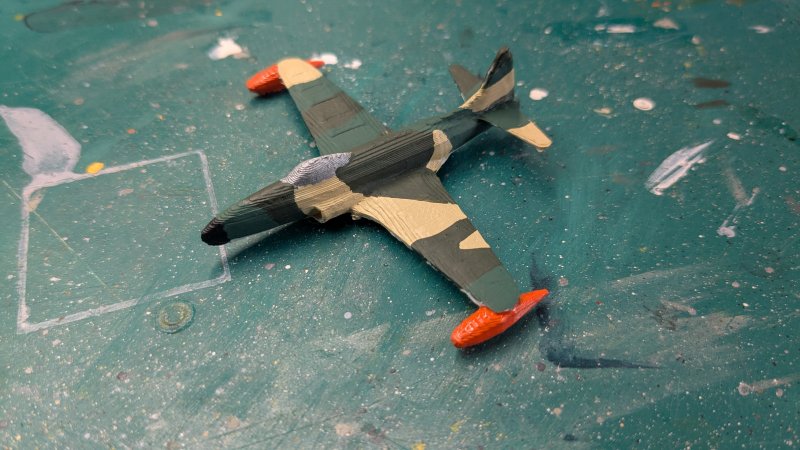

While the putty&sanding continues, I printed a small dummy model of a P80 to test the camo to be used on this plane.

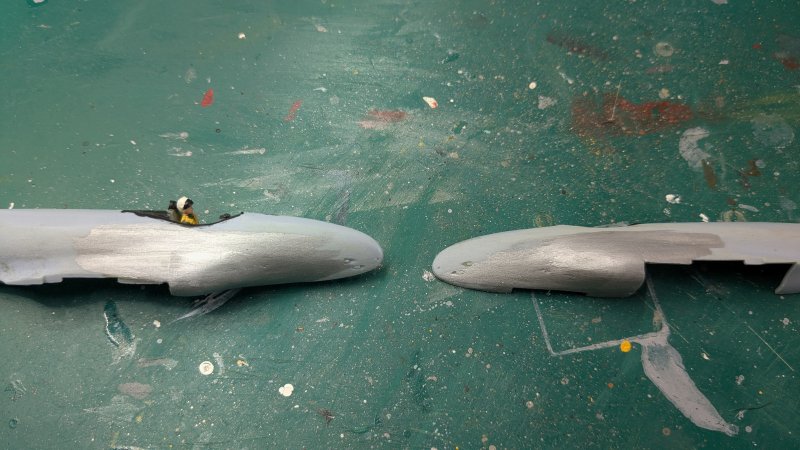

The old air intakes are now closed.

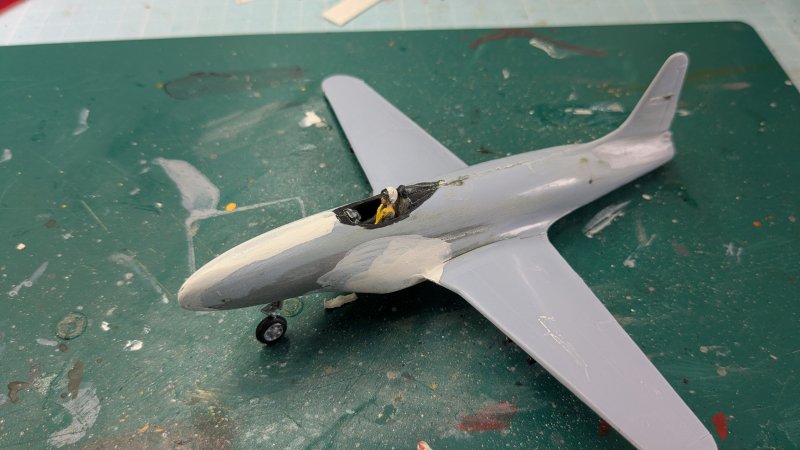

Putting fuselage and wings together.

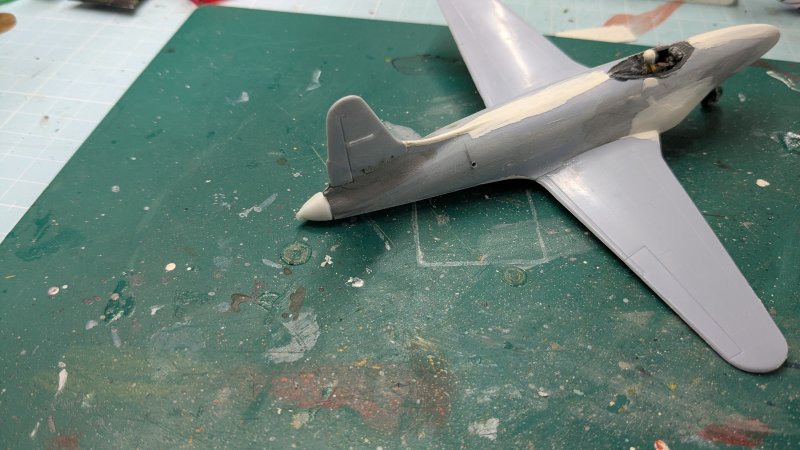

The original jet engine has to be closed
