This subject came out of left field on me, I had visited SPF and came across a thread all about this aircraft. Once I saw the photos of it, I knew I just had to build a model of it. Yes, this is a RW aircraft.

The US Navy were looking for a jet powered carrier landing trainer, they already were operating T-33's (designated TV-1) but they weren't carrier capable. The Navy was dubious about its control capability during the crucial moments just before and during landing on a carrier. To address the Navy's concerns, Lockheed took a T-33 and modified it giving it a larger horizontal tail plane and not one, but two fins, which were attached to the tail plane's ends.

These were the photos that had been posted by Justo Miranda, he also posted a couple of side profiles of it, but contacting him, he said he didn't have any 3-View.









Looking in the Squadron/Signal bookazine, P-80 (T-33/F-94) in Action, there's another photo of it. Carl (The Big Gimper) tells me that there's also a photo in the Aztec book on the T-33. I've got the Ginter book on the T2V Seastar --- (somewhere  :banghead: ) and I'm fairly sure there's some photos in that book too.


« Last Edit: April 18, 2020, 10:19:20 am by kitnut617 »
If I'm not building models, I'm out riding my dirtbike

Offline PR19_Kit

  • Closeted Take That fan
  • What-IF SIG
  • Needs A Life Outside What-If
  • *****
  • Posts: 33783
  • Whiffing since the 70s
They were just using up spare fins from the P-38 production line.  ;D

That's pretty interesting, and unusual too. It'd make many JMNs figure it was a Whiff too.  ;D
Any aircraft can be improved by fitting longer wings, and/or a longer fuselage

...and I'm not a closeted 'Take That' fan, I'm a REAL fan! :)

Regards
Kit

Offline kitnut617

  • That's got his tum rumbling already just by the sound of it.
  • Needs A Life Outside What-If
  • *****
  • Posts: 12462
So here's the result of my build;




















If I'm not building models, I'm out riding my dirtbike

Offline PR19_Kit

  • Closeted Take That fan
  • What-IF SIG
  • Needs A Life Outside What-If
  • *****
  • Posts: 33783
  • Whiffing since the 70s
Oh yeah!  :thumbsup: :thumbsup:

That looks great Robert, it's almost a pity it isn't a Whiff or it'd be a Whiffie nomination for sure.
Any aircraft can be improved by fitting longer wings, and/or a longer fuselage

...and I'm not a closeted 'Take That' fan, I'm a REAL fan! :)

Regards
Kit

Offline kitnut617

  • That's got his tum rumbling already just by the sound of it.
  • Needs A Life Outside What-If
  • *****
  • Posts: 12462
Thanks Kit ---
If I'm not building models, I'm out riding my dirtbike

Offline Old Wombat

  • Needs A Life Outside What-If
  • *****
  • Posts: 8628
  • Armour: The Gods of War love it!
 :thumbsup:
Has a life outside of What-If & wishes it would stop interfering!

"The purpose of all War is Peace" - St. Augustine

veritas ad mortus veritas est

Offline kitnut617

  • That's got his tum rumbling already just by the sound of it.
  • Needs A Life Outside What-If
  • *****
  • Posts: 12462
Anyway, this all started about four weeks ago, base kit was this old Hasegawa kit.

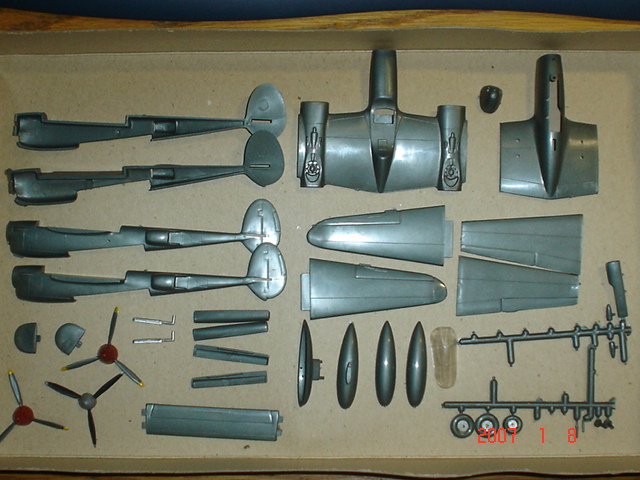

And my first thoughts when seeing the photos was -- they used P-38 tail surfaces. And I had this un-named kit of a P-38 which I've decided was going to be used as a donor kit for something else in mind, so the fins were quickly removed before I changed my mind ---  :wacko:



The build of the T-33 was fairly quick, it's a very basic kit at best, it had a lot of flash on it, which surprised me seeing as it was a Hasegawa kit. I didn't take any photos of that part of the build, it's a bit boring to be honest, but the new tail took a lot of the time to make, plus the painting ---

I printed off the side profile and scaled it to the kit's fuselage, then offered up the P-38 fins to it and soon realized that although the Twin Tail's fins look like a P-38, they weren't quite. So a bit of reprofiling was done and a lot of sanding to thin the fin parts down was needed.



For the tail modifications, I started with some strips of styrene angle section which was whittled down to match the top of the fuselage and the side profile. These pics I've got bit's an pieces taped up so I could view the result. I had pinned the new tail plane with some small diameter brass tubing and found that cutting the P-38 just in half didn't look right as the styrene angle leg made it look to wide apart. So I trimmed the root ends down until I got the fins to be the same width as the P-38 has them. With the lack of a 3-View, that's a bit of a guess on my part.







Once everything was glued together, I primed it with Humbrol H1 but then I switched to some very light grey instead, H196. I did a lot of wet&dry sanding and it took a couple of coats to get the finish I was looking for, as I used Humbrol's Polished Aluminum, H27002, for the NMF. For the tip tanks, I used Humbrol Gloss Red, H19, for the base coat, then Humbrol Gloss Blaze Orange, H209, for the top coat. Me and Carl had figured out that the photos had shown that the tanks were DayGlo Red/Orange or Fluorescent Orange. Carl had sent me some black & white photos of a T-33 which he knew was DayGlo Red/Orange and the odd shade of white the tanks have, matched.
