P-824 or 823 Twin-Tailsittang (Crazy Mustangs step 5)
« on: September 05, 2010, 04:17:53 am »
Next model is going to be built:
*1/ I had so many P-82 kits I decided I should build the remaining ones all at once. So the final Twin-Mustang will have 4 fuselages, but I lack room, even without external wings...
*2/ I used to paint sky blue my level aircraft and golden my VTOL tailsitters, and – I don”t know why – I bought one more golden paint pot last time I ordered paint
*1+2/ This will be a cross 4-fuselage tail-sitting quadruple Mustangs!
« Last Edit: September 19, 2010, 07:41:31 am by Tophe »
[the word "realistic" hurts my heart...]

Offline Captain Canada

  • "but this time it's different. I was drunk when I agreed to it."
  • Needs A Life Outside What-If
  • *****
  • Posts: 29863
Re: P-824 Twin-Tailsittang (Crazy Mustangs step 5)
« Reply #1 on: September 05, 2010, 04:32:01 am »
Nice....have fun with this one, Tophe !

 :wub:
CANADA KICKS arse !!!!

Long Live the Commonwealth !!!
Vive les Canadiens !
Where's my beer ?

Online PR19_Kit

  • Closeted Take That fan
  • What-IF SIG
  • Needs A Life Outside What-If
  • *****
  • Posts: 35059
  • Whiffing since the 70s
Re: P-824 Twin-Tailsittang (Crazy Mustangs step 5)
« Reply #2 on: September 05, 2010, 04:42:16 am »
FOUR???  :o
Any aircraft can be improved by fitting longer wings, and/or a longer fuselage

...and I'm not a closeted 'Take That' fan, I'm a REAL fan! :)

Regards
Kit

Online Tophe

  • Needs A Life Outside What-If
  • *****
  • Posts: 17812
    • my what-if models
Re: P-824 Twin-Tailsittang (Crazy Mustangs step 5)
« Reply #3 on: September 05, 2010, 05:04:53 am »

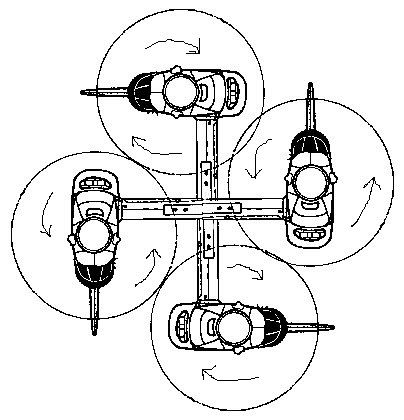

Here is the project, with simply intermeshing propellers... (to keep standard parts...):
[the word "realistic" hurts my heart...]

Online Tophe

  • Needs A Life Outside What-If
  • *****
  • Posts: 17812
    • my what-if models
Re: P-824 Twin-Tailsittang (Crazy Mustangs step 5)
« Reply #4 on: September 05, 2010, 05:12:02 am »
correction: there will be no tailplane ("no need" said the engineer Mr X.Töph):
[the word "realistic" hurts my heart...]

Online Tophe

  • Needs A Life Outside What-If
  • *****
  • Posts: 17812
    • my what-if models
Re: P-824 Twin-Tailsittang (Crazy Mustangs step 5)
« Reply #5 on: September 05, 2010, 07:02:38 am »
Thinking about it, this is what I should build, for balance, but with asymmetric wing profile, I fear I will fail...
[the word "realistic" hurts my heart...]

Online PR19_Kit

  • Closeted Take That fan
  • What-IF SIG
  • Needs A Life Outside What-If
  • *****
  • Posts: 35059
  • Whiffing since the 70s
Re: P-824 Twin-Tailsittang (Crazy Mustangs step 5)
« Reply #6 on: September 05, 2010, 01:39:07 pm »
Why?

I can't see any reason why that shouldn't work. So long as the master pilot decides where it's going the whole bunch of them will assume a reasonable angle of attack to the airstream. Some of the wings will be more effecient than others, but with four Merlins, or Allsions, up front it won't make much difference. It's going UP for sure!  ;D
Any aircraft can be improved by fitting longer wings, and/or a longer fuselage

...and I'm not a closeted 'Take That' fan, I'm a REAL fan! :)

Regards
Kit

Offline sequoiaranger

  • Gone but not Forgotten
  • Needs A Life Outside What-If
  • **********
  • Posts: 2363
  • Old Fart with too much time on his hands!
If I Might Suggest...
« Reply #7 on: September 05, 2010, 02:46:48 pm »
The P-82 nose is longer than a standard Mustang. To keep some of the propeller conflict out, use two standard Mustang noses at two opposite sides. Therefore the Mustang props would be "below" the P-82 props. It would almost be a contra-prop. In fact, any two opposite noses MUST have the same rotation, so use the "handed" P-82 props wisely.



Also, take the centermost machine-guns out for wing strength. I think on your model (as opposed to the drawing) the guns will not have to fire through the propeller arc.

If you don't know the plane, google "Convair Pogo" for a version I saw fly in my home town of San Diego many years ago.
« Last Edit: September 05, 2010, 02:56:37 pm by sequoiaranger »
My mind is like a compost heap: both "fertile" and "rotten"!

Online Tophe

  • Needs A Life Outside What-If
  • *****
  • Posts: 17812
    • my what-if models
Re: P-824 Twin-Tailsittang (Crazy Mustangs step 5)
« Reply #8 on: September 05, 2010, 09:03:09 pm »
Why?
I can't see any reason why that shouldn't work. So long as the master pilot decides where it's going the whole bunch of them will assume a reasonable angle of attack to the airstream. Some of the wings will be more effecient than others, but with four Merlins, or Allsions, up front it won't make much difference. It's going UP for sure!  ;D
I mis-spoke, sorry. I was not meaning the airplane cannot fly or be piloted, I was meaning my modelling will fail to build it, as the wing-fuselage connection is very crurved above and almost flat below (Bernouilli principle of lift), so the central wing will be in the wrong position for the fuselage upside-down. Well, tonight dreaming, I guess I found the answer: cutting the central wing at the middle and turn half of it opposite, but it is even more complicated than that, as I must have too half starboard-central half-wings... I will see, I think I will fail but I will try I promess...
  As a dreamer, I follow you on dreaming how this airplane would fly... (funny, thanks!) ;D Well, to take off, no (big) problem, every one of the 4 pilots is in a similar position, but... what if they are in level flight? At least 2 pilots would have the legs above the head! Good for a racer, sposored by Aspirin or Paracetamol factory... :lol:
[the word "realistic" hurts my heart...]

Online Tophe

  • Needs A Life Outside What-If
  • *****
  • Posts: 17812
    • my what-if models
Re: If I Might Suggest...
« Reply #9 on: September 05, 2010, 09:09:22 pm »
The P-82 nose is longer than a standard Mustang. To keep some of the propeller conflict out, use two standard Mustang noses at two opposite sides. Therefore the Mustang props would be "below" the P-82 props. It would almost be a contra-prop. In fact, any two opposite noses MUST have the same rotation, so use the "handed" P-82 props wisely.
Also, take the centermost machine-guns out for wing strength. I think on your model (as opposed to the drawing) the guns will not have to fire through the propeller arc.
If you don't know the plane, google "Convair Pogo" for a version I saw fly in my home town of San Diego many years ago.
Good advice thanks, that could work actually! And I have 3 extra Mustang kits to finish also, I could do it, I will see.
I had not removed the guns from my picture because I was lazy in a week-end dreaming, but my model will have as usual no killing machine-guns, sorry. I respect your loving them while I don't.
I had built a Pogo myself, as hybrid Pogo-Komet (Poget). At http://www.whatifmodelers.com/index.php/topic,12121.0.html . Thanks to the witness you are.
[the word "realistic" hurts my heart...]

Offline ChernayaAkula

  • Needs A Life Outside What-If
  • *****
  • Posts: 4553
  • Deutscher Meister 2011 & 2012 - BVB 09!
Re: P-824 Twin-Tailsittang (Crazy Mustangs step 5)
« Reply #10 on: September 05, 2010, 11:53:17 pm »
That's just mental! And therefore, I love it! :wub: :lol:
Cheers,
Moritz


Must, then, my projects bend to the iron yoke of a mechanical system? Is my soaring spirit to be chained down to the snail's pace of matter?

Online Tophe

  • Needs A Life Outside What-If
  • *****
  • Posts: 17812
    • my what-if models
Re: P-824 Twin-Tailsittang (Crazy Mustangs step 5)
« Reply #11 on: September 06, 2010, 09:10:13 am »
I checked the content of the boxes, and HORROR! :blink: :huh: I found only 3½ fuselages (7 halves!). So... with tears in my eyes, I considered making a P-823, well balanced anyway:
[the word "realistic" hurts my heart...]

Offline sequoiaranger

  • Gone but not Forgotten
  • Needs A Life Outside What-If
  • **********
  • Posts: 2363
  • Old Fart with too much time on his hands!
Re: P-823
« Reply #12 on: September 06, 2010, 09:15:43 am »
Well, you can make the ship Italian--they love tri-motors!!
« Last Edit: September 09, 2010, 09:01:45 am by sequoiaranger »
My mind is like a compost heap: both "fertile" and "rotten"!

Online Tophe

  • Needs A Life Outside What-If
  • *****
  • Posts: 17812
    • my what-if models
Re: P-824 Twin-Tailsittang (Crazy Mustangs step 5)
« Reply #13 on: September 06, 2010, 09:18:35 am »
Yes Sequoia but my models have no nationality.
Well, checking the P-51 boxes also, I found the 8th halve of P-82. (Sigh of relief). So… well, 823 or 824? Maybe 823, keeping the 4th fuselage for an asymmétric twin… :rolleyes:
Here is the overview of the P-821 on the workbench and remaining P-82 parts for P-824 or 823 (from 4 Monogram kits at the beginning):
[the word "realistic" hurts my heart...]

Online Tophe

  • Needs A Life Outside What-If
  • *****
  • Posts: 17812
    • my what-if models
Re: P-824 Twin-Tailsittang (Crazy Mustangs step 5)
« Reply #14 on: September 08, 2010, 10:57:07 am »
If I decided from the very beginning, I could have used 7 fuselages instead of 4 (or 3):
[the word "realistic" hurts my heart...]
