Bonestell Moonrocket in 1/350 scale

Started by frank2056, April 09, 2011, 07:13:34 PM

Previous topic - Next topic

frank2056

I had this printed out a while ago, but just now got around to finishing it. The original is from Bonestell & Ley's "The Conquest of Space" and I used Jon Roger's drawings and dimensions (from "The Spaceship Handbook") to make the 3D version in Rhino:

Original Bonestell:

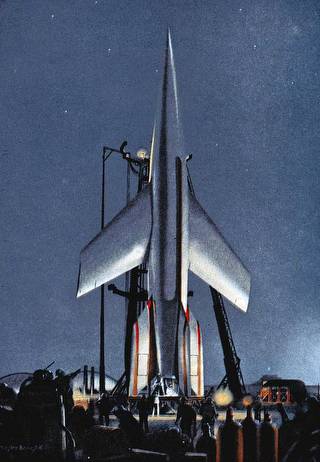

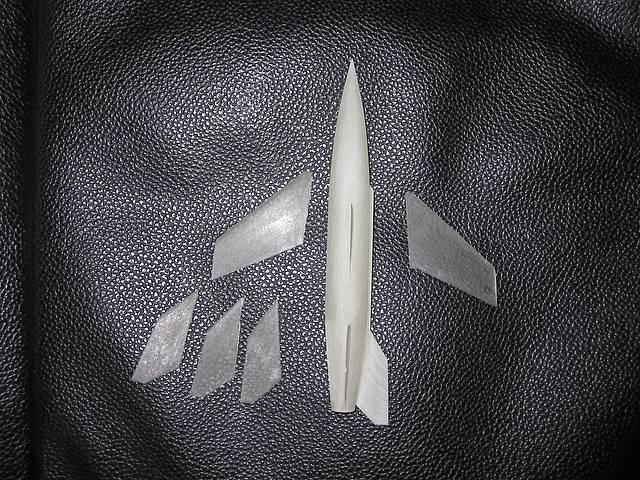

Parts:


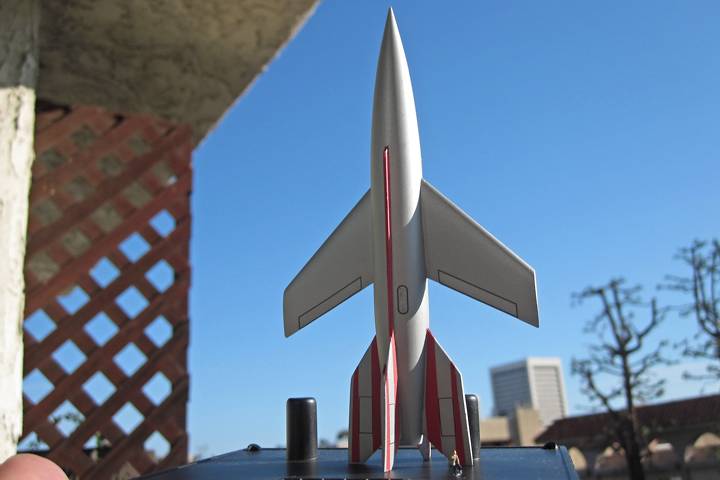

An obscene amount of PSR (actually, mostly S&R - I did a good job designing it and didn't need putty) and Mr. Surfacer later:




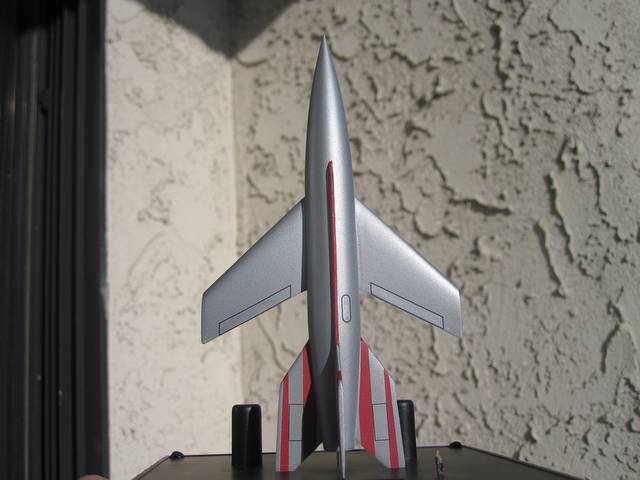

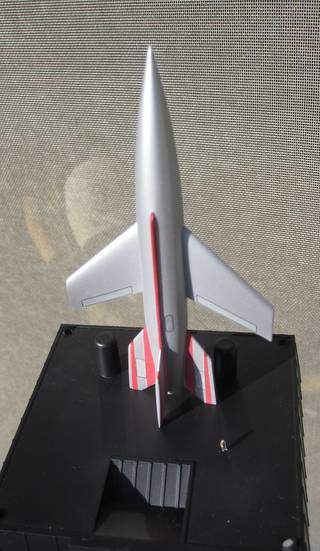

The figure is a 1/350 sailor from Preiser.

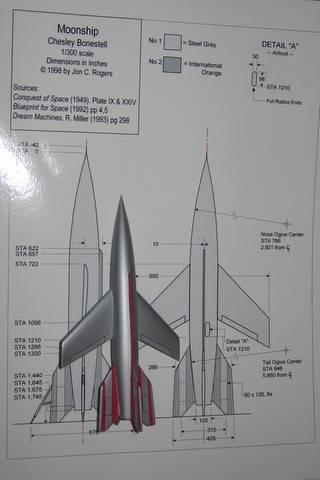

On the plans I used:







Cobra

Awesome Job,Frank :thumbsup: :thumbsup: Sure you didn't Work for NASA? this is Cool,Well Designed,and Well Built! Thanks for Posting :cheers: Dan

Ed S

Nicely done.  And a great use of some new technology.
We don't just embrace insanity here.  We feel it up, french kiss it and then buy it a drink.

NARSES2

Silly question. Is this made form parts "printed" on a 3D printer ?

If so then it's the first model done this way I think I've ever seen. Excellent work  :bow:

Have to admit I was sceptical of the process but then the only example I've seen was in the Science Museum in Kesington.
Decals my @r$e!

frank2056

Quote from: NARSES2 on April 10, 2011, 02:01:49 AM
Silly question. Is this made form parts "printed" on a 3D printer ?

The process starts by scanning in the plans I bought from Jon Rogers (1 sheet) then importing it as a background image into Rhino. I then drew out the components that would eventually become the 3D object. After that was done and the model was scaled to 1/350, I checked that the file was printable and mailed it off to Shapeways in the Netherlands. They printed out the parts.

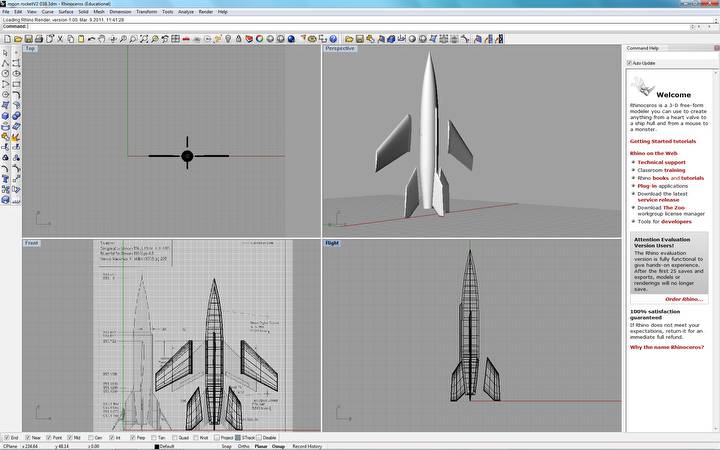

Here's a screenshot of what it looks like in Rhino:



Ideally I should make a mold of the master printed parts and work on resin copies, but since I have more than one copy, I went ahead and built a master.


GTX

All hail the God of Frustration!!!

NARSES2

Thanks for the explanation - interesting
Decals my @r$e!

Doc Yo

 Thats gorgeous, Frank. I'm really going to have to take a crack at Rhino one of these days.

frank2056

Quote from: Doc Yo on April 11, 2011, 08:31:54 AM
Thats gorgeous, Frank. I'm really going to have to take a crack at Rhino one of these days.

Thanks Craig. It's not as hard as it seems and the in-program help is very good. The key is to pick a simple but challenging project and set aside a day (or an afternoon) to get familiar with the program. I picked the C-57. It took me the better part of a Saturday but at the end of the day I had something that looked like a C-57 (without the stairs).

Brian da Basher

Wow Frank, that's sooo cool it hurts! I know a couple of vintage shops that'd ask a couple of Frankins for something like this.

Printing out your own models?? I am now envy personified.

Outstanding!!!
