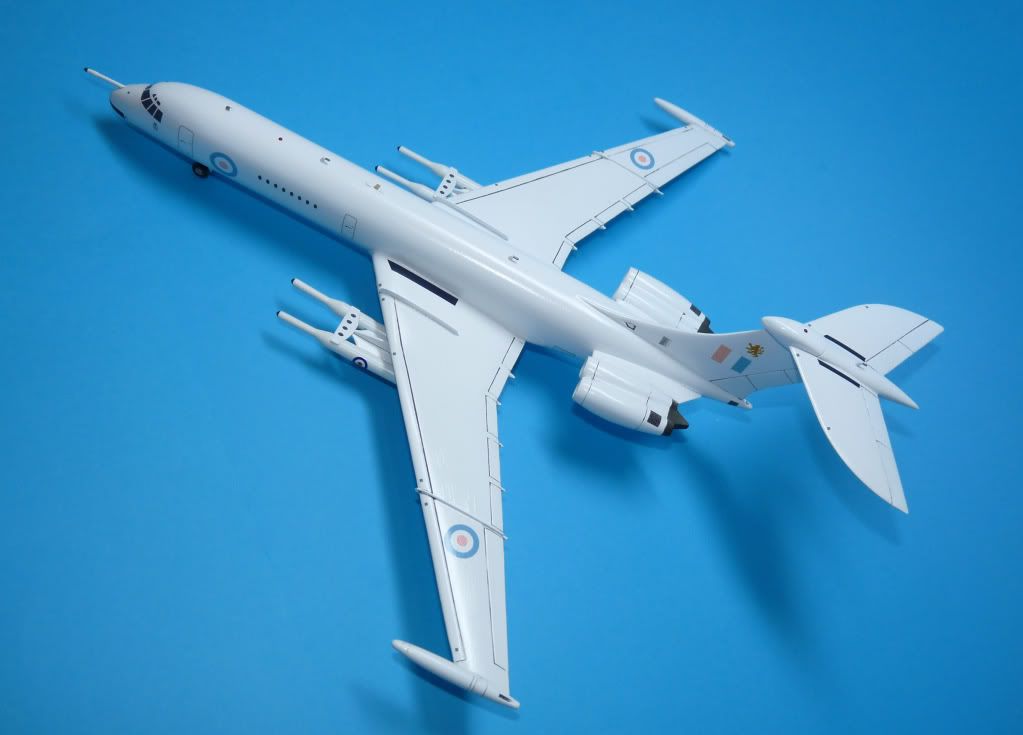

Hi everyone, my latest offering comes in the form of an early proposal for a nuclear missile equipped variant of the ubiquitous VC10, one of several such interesting proposals submitted by the Vickers Corporation and BAC in the early sixties. A bit of background for those interested. The VC10 was seriously looked at for adaption to a variety of roles including ballistic missile carrier, maritime and electronic recon, AEW, and even the worlds largest interceptor!!!.To meet these roles Vickers and BAC proposed using multi role modular aircraft with interchangable noses and fuselages, totally unique at the time. These nuclear equipped aircraft were to have worked alongside then gradually have replaced the V-Bombers in time.
This version the ALBM carrier was based on the Type 1106 variant ,(as used by Transport Command) but had the standard 1100 airliner fuselage matched with the Super's 1150 wings (to take the weight of the Skybolts and which had a more appropriate Mach rating) and uprated Conway Co.43 engines.The nose was heavily re profiled to encase the NBS and H2S systems and tanks were fitted to the extreme wing tips. Up to eight Skybolts could be carried pushing the total payload up to a massive 40,000lbs, this is the main reason that I added a new beefier undercarriage with a lower pressure footprint enabling it to be flown from more RAF airfields.There was also mention of fitting reheat to the Conways, RATO packs or even replacing them altogether with Bristol BS.81 turbofans of 36,000 lbs thrust each.

An impressive way of looking at the strike potential would be to say that it would take 72 Vulcans and 32 Victors to carry a credable deterrent whereas only 42 VC10's would have been needed to do the same job!

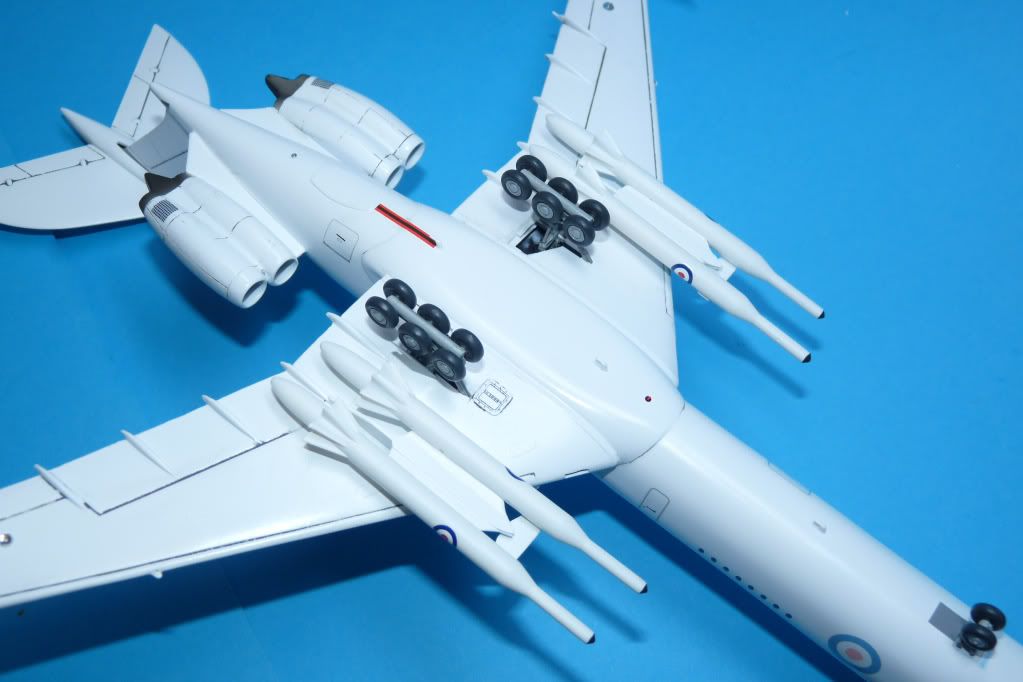

Weapons to have been carried were 8 (or more usually 4) Douglas Skybolts, 4 Z.89's or 6 Bristol X.12's....a truely frightening war load!!!

Reference was mainly supplied by Chris Gibson and his wonderful book, ''Vickers VC10, AEW, Pofflers and other unbuilt variants' and is a goldmine of information, (hopefully allowing other models to be built in time!),

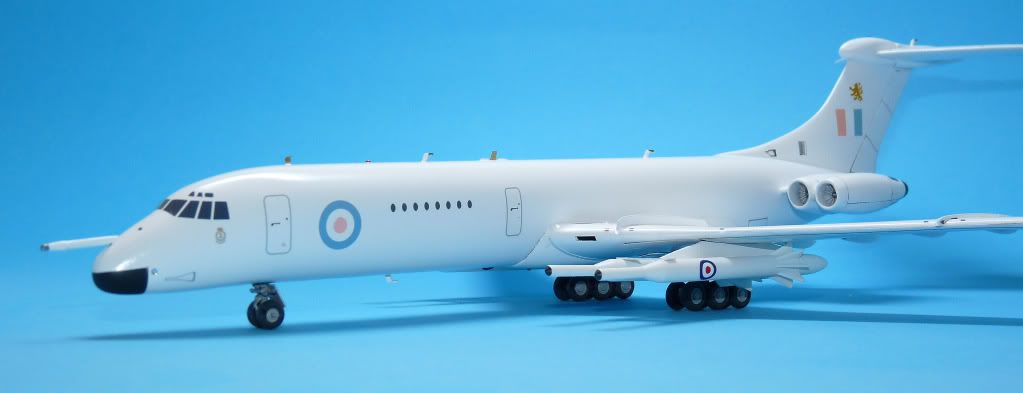

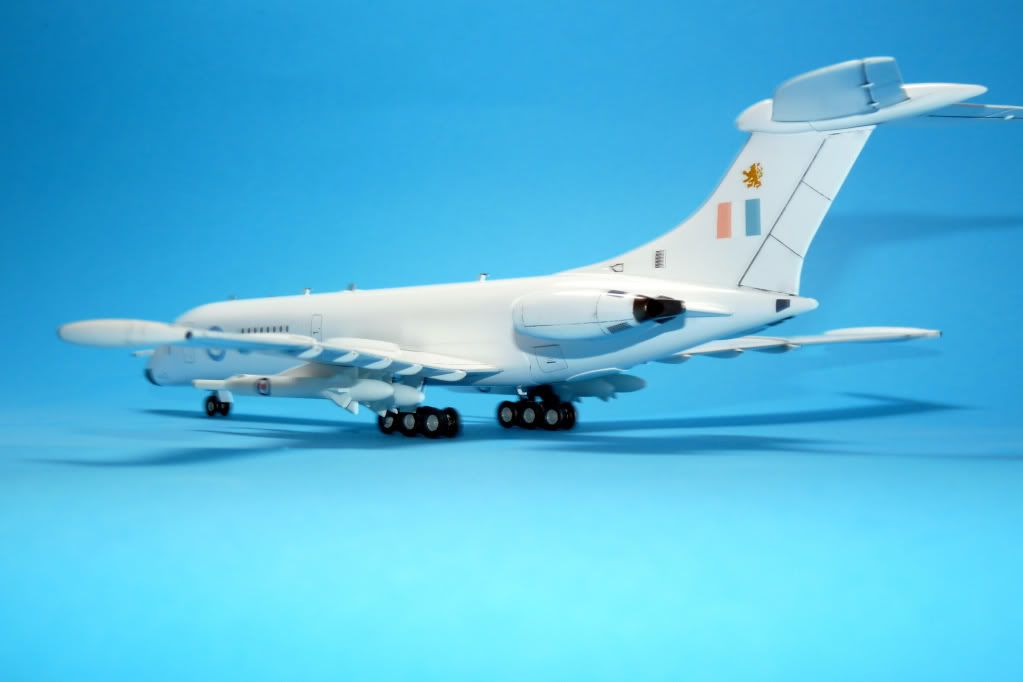

The model is basically a hybrid of parts namely Airfix fuselage and tail, Welsh models Super VC10 wings, Braz Super engines, Zvezda TU 160 Blackjack undercarriage and lots of good old fine Milliput and requisite elbow grease!. The fuselage was built as per the kit but with the windows filled and Milliput  used to recontour the nose to make it more Nimrod like and match the 1/144th drawings I had made for the build. The wings were then added from the WM vac kit and wingtip pods added from the spares bin, new pe wings fences were added from the two six set then the excellent Braz Super|VC10 CO 43 engines were fitted,(vastly superior to the Airfix efforts!!), The Skybolts came from the old Crown B52 kit and pylons were scratchbuilt again according to plans, next the undercarriage from the Blackjack kit was cut down and adapted to fit before finishing off with a mix of decals using the Two Six Gulf Air set, Freightdogs Anti nuclear markings and stencils and bits from the spares bin again. Finished off in Tamiya white and Vallejo satin clear the model was given a light wash of Promodeller dirt and burnt umber oil paint thinned with white spirit.Finally Little Cars red and clear lenses were added again as per drawings and that completed a fun build of an aircraft that would have been truely impressive had it ever entered service. Mine has been finished as a Wittering based aircraft (139 'Jamaica' squadron circa 1965). The only thing left to be fitted are the pale blue serials ( I've run out!!) which will be XM720 from a cancelled second batch Victor...
There's was a fair bit of conjecture as to what name it it have been given, (the name Poffler was used but as usual this was thought to be a typically obscure project code name to throw any would be spies off the scent!), and after a bit of searching it appears that the name Vigilant would have been quite likely as it continued the 'V' theme of the other V-Bombers in service. Seval drawings of the time showed it in camo scheme but as the Skybolt was designed to be launched at around 40,000 feet I thought the anti flash white more in keeping with the role.

Anyhoo after all that, hope you like it, (a similarly equipped Trident is in the pipeline too for those interested  :wacko:)....




Cheers all,  :cheers:

Melchie.....

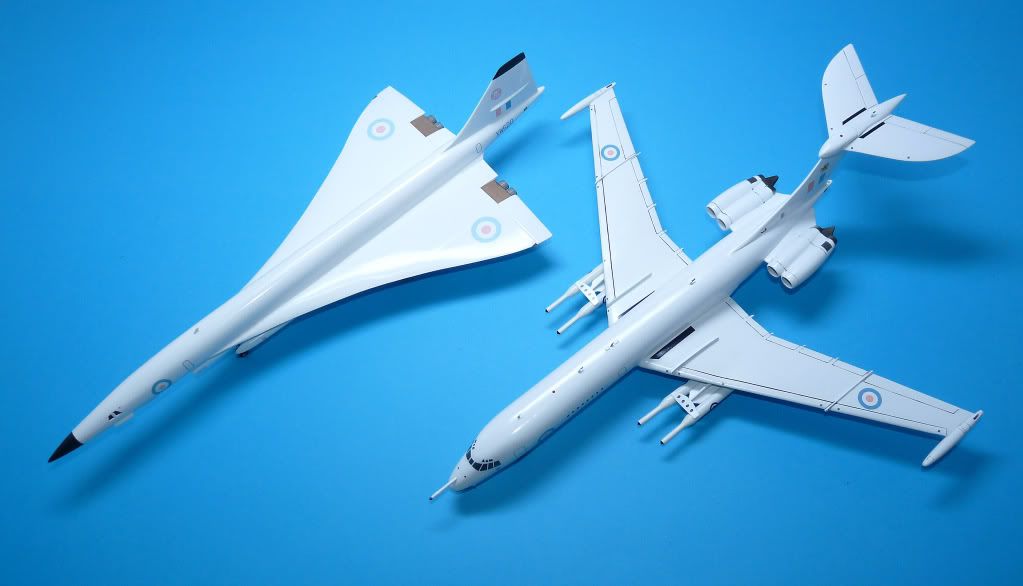

Here along side my earlier BAC Rapier B1, (nuclear equipped Concorde proposal.....next Trident?)...

« Last Edit: November 06, 2010, 06:58:41 am by General Melchet »
Clearly, Field Marshal Haig is about to make yet another gargantuan effort to move his drinks cabinet six inches closer to Berlin.

Offline Hobbes

  • Stores peanuts in his mailbox
  • What-IF SIG
  • Needs A Life Outside What-If
  • *****
  • Posts: 6617
    • Acme Engineering
Re: Vickers VC10 Skybolt Poffler........Armagheddon comes in a lovely shape!
« Reply #1 on: October 25, 2010, 02:52:46 am »
 :wub: :wub: :wub:

That's fantastic! I've been waiting for models based on Gibson's book, so good to see one finished.

I thought the Super wing has a leading edge extension along the inner half of the wing? Or is that just the type 1102/1103?

And was that landing gear arrangement shown in Gibson's book? I can't remember ...

Offline NARSES2

  • Nick was always on his mind - just ask the Pet Shop Boys
  • Global Moderator
  • Needs A Life Outside What-If
  • *****
  • Posts: 43540
Re: Vickers VC10 Skybolt Poffler........Armagheddon comes in a lovely shape!
« Reply #2 on: October 25, 2010, 03:06:04 am »
Superb  :bow: :bow: :thumbsup:
Decals my @r$e!

Offline deathjester

  • Needs A Life Outside What-If
  • *****
  • Posts: 1929
  • 'Even his Toaster has Reheat...'
    • www.stormfrontmodels.co.uk
Re: Vickers VC10 Skybolt Poffler........Armagheddon comes in a lovely shape!
« Reply #3 on: October 25, 2010, 03:28:30 am »
No doubt about it, that is utterly brilliant! :bow:

Offline Thorvic

  • Evil Kit Finder Git General
  • Administrator
  • Needs A Life Outside What-If
  • *****
  • Posts: 11437
    • Album
Re: Vickers VC10 Skybolt Poffler........Armagheddon comes in a lovely shape!
« Reply #4 on: October 25, 2010, 04:25:49 am »
Superb work Andy, Chris will be pleased when he see's it.

Trident ? (Shoudln't that read Avro 776 ?  :thumbsup:)

Project Cancelled SIG Secretary, specialising in post war British RN warships, RN and RAF aircraft projects. Also USN and Russian warships

Offline Mossie

  • Twiglet doctor
  • What-IF SIG
  • Needs A Life Outside What-If
  • *****
  • Posts: 14124
  • Don't laugh at his mule
Re: Vickers VC10 Skybolt Poffler........Armagheddon comes in a lovely shape!
« Reply #5 on: October 25, 2010, 04:48:49 am »
Beautiful work Andy! :wub: :wub: :wub:
I don't think it's nice, you laughin'. You see, my mule don't like people laughin'. He gets the crazy idea you're laughin' at him. Now if you apologize, like I know you're going to, I might convince him that you really didn't mean it.

Offline TsrJoe

  • What-IF SIG
  • Needs A Life Outside What-If
  • *****
  • Posts: 2401
Re: Vickers VC10 Skybolt Poffler........Armagheddon comes in a lovely shape!
« Reply #6 on: October 25, 2010, 04:57:35 am »
Superb modelling there Andy certainly looks different as the V Bomber replacement, ill let Chris know bout it too, he'll be chuffed im sure  :cheers:
... 'i reject your reality and substitute my own !'

IPMS.UK. 'Project Cancelled' Special Interest Group Co-co'ordinator
IPMS.UK. 'TSR-2 SIG.' IPMS.UK. 'What-if SIG.' IPMS.UK. 'Cold War SIG.' IPMS. 'Finnish SIG.', 'Finnoscandia what-if group'

Offline rickshaw

  • Needs A Life Outside What-If
  • *****
  • Posts: 10801
Re: Vickers VC10 Skybolt Poffler........Armagheddon comes in a lovely shape!
« Reply #7 on: October 25, 2010, 05:53:51 am »
Nice.  Massive pylons for those Skybolts!  Looks lovely in anti-flash white.  :thumbsup:
How to reduce carbon emissions - Tip #1 - Walk to the Bar for drinks.

Offline AeroplaneDriver

  • Not licensed to do this sort of thing
  • What-IF SIG
  • Needs A Life Outside What-If
  • *****
  • Posts: 4362
  • Busy repainting the Jetstream in Red Arrows colors
Re: Vickers VC10 Skybolt Poffler........Armagheddon comes in a lovely shape!
« Reply #8 on: October 25, 2010, 06:20:11 am »
I suppose that for someone who is into this speculative type of modeling a build like this would seem...oh...what's the word...??


STUNNING?

SPECTACULAR?

INSPIRING?

 ;D :thumbsup: :wub: :wub: :wub:

Beautiful work!!
So I got that going for me...which is nice....

Offline Weaver

  • I'm either dumb or evil - you decide.....
  • What-IF SIG
  • Needs A Life Outside What-If
  • *****
  • Posts: 18214
  • Has a life outside What-If that is also What If
Re: Vickers VC10 Skybolt Poffler........Armagheddon comes in a lovely shape!
« Reply #9 on: October 25, 2010, 06:21:08 am »
Nice one - excellent finish!  :wub: :thumbsup:

Don't know about "Vigilant": Vickers made an ATGW of that name at about the same time, although if this project was seriously in the offing then they might have reserved it for the plane.
Neophyte: Is Eris true?
Malaclypse the Younger: Everything is true.
Neo: Even false things?
MtY: Even false things are true.
Neo: How can that be?
MtY: I don't know man, I didn't do it.
Principia Discordia

Twitter: @hws5mp
www.minds.com: @HaroldWeaverSmith

Offline Taiidantomcat

  • Needs A Life Outside What-If
  • *****
  • Posts: 4382
Re: Vickers VC10 Skybolt Poffler........Armagheddon comes in a lovely shape!
« Reply #10 on: October 25, 2010, 07:45:56 am »
Excellent work!! Wonderful model  :wub:


I actually got to see a VC-10 fly over a few months ago... last thing I expected to see when I looked up, they are quite rare in the United States  ;D
"Imagination is the one weapon in the war against reality." -Jules de Gaultier

"My model is right! It's the real world that's wrong!" -global warming scientist

An armor guy, who builds airplanes almost exclusively, that he converts to space fighters-- all while admiring ship models.

Offline Martin H

  • Im their Leader. Which way did they go?
  • Administrator
  • Needs A Life Outside What-If
  • *****
  • Posts: 8464
Re: Vickers VC10 Skybolt Poffler........Armagheddon comes in a lovely shape!
« Reply #11 on: October 25, 2010, 08:11:43 am »
I actually got to see a VC-10 fly over a few months ago... last thing I expected to see when I looked up, they are quite rare in the United States  ;D

Their not so common in the UK any more either
I always hope for the best.
Unfortunately,
experience has taught me to expect the worst.

Size (of the stash) matters.



IPMS (UK) What if? SIG Leader.
IPMS (UK) TSR-2 SIG Member.
IPMS (UK) R & D SIG Member.
IPMS (UK) DC-3/C-47 SIG Member.

Offline thedarkmaster

  • Would rather live in Nottingham than holiday in Hull
  • What-IF SIG
  • Needs A Life Outside What-If
  • *****
  • Posts: 2113
  • Proud Daddy of the Pink Princess's
Re: Vickers VC10 Skybolt Poffler........Armagheddon comes in a lovely shape!
« Reply #12 on: October 25, 2010, 02:01:46 pm »


Vc10  :wub: :wub: :wub:

Anti flash white  :wub: :wub: :wub:

VC10 in anti flash white  :wub: :wub: :wub: :wub: :wub: :wub:
Everything looks better with the addition of British Roundels!



the Empires Twilight facebook page

https://www.facebook.com/pages/The-Empires-twilight/167640759919192

"My country, right or wrong; if right, to be kept right; and if wrong, to be set right." - Carl Schurz

Offline Gondor

  • What-IF SIG
  • Needs A Life Outside What-If
  • *****
  • Posts: 7530
  • Builds Slower Than A Glacier Moves
Re: Vickers VC10 Skybolt Poffler........Armagheddon comes in a lovely shape!
« Reply #13 on: October 25, 2010, 02:07:33 pm »
Absolutely fantastic and an inspiration to get to work on the VC-10 I have in the stash.

Gondor
My Ability to Imagine is only exceeded by my Imagined Abilities

Offline Ian the Kiwi Herder

  • Other way around for me!
  • What-IF SIG
  • Needs A Life Outside What-If
  • *****
  • Posts: 4948
  • "I have a plan....."
Re: Vickers VC10 Skybolt Poffler........Armagheddon comes in a lovely shape!
« Reply #14 on: October 25, 2010, 02:29:43 pm »
He's done it again  :blink:..... Andy, that's just superb..... again !

Ian
"When the Carpet Monster tells you it's full....
....it's time to tidy the workbench"

Confuscious (maybe)
