Weaver

Again, might enter this, but havn't even got the kit/kits yet!

Patchwork World build. The original idea was a Bell Huey modified to look "Westland Scout/Waspy" as per the discussion on the UH-1 thread and the profile posted by there and in the PW thread by Apo. Basically, wheeled gear (possibly surplus from Belvedere project), exposed engine, 4-blade rotor, ribbed back end.

I might now do this one as a licence-built Avro product, since have it in mind to do eventually use it in a diorama with some Saracen/Saladin-based armour.
"Things need not have happened to be true. Tales and dreams are the shadow-truths that will endure when mere facts are dust and ashes, and forgot."
 - Sandman: A Midsummer Night's Dream, by Neil Gaiman

"I dunno, I'm making this up as I go."
 - Indiana Jones

Weaver

Well, got a kit at least/last (Italeri) and engines, one from my Iskra and one from Nick's (thanks Nick  :thumbsup:). 4-bladed rotor will now probably come from a half-built EC-145 that I picked up as a bonus in a job lot of stuff from ebay. That's good because, with undercarriage donated by my Belvedere, it means I don't have to buy a Wessex to butcher....
"Things need not have happened to be true. Tales and dreams are the shadow-truths that will endure when mere facts are dust and ashes, and forgot."
 - Sandman: A Midsummer Night's Dream, by Neil Gaiman

"I dunno, I'm making this up as I go."
 - Indiana Jones

Weaver

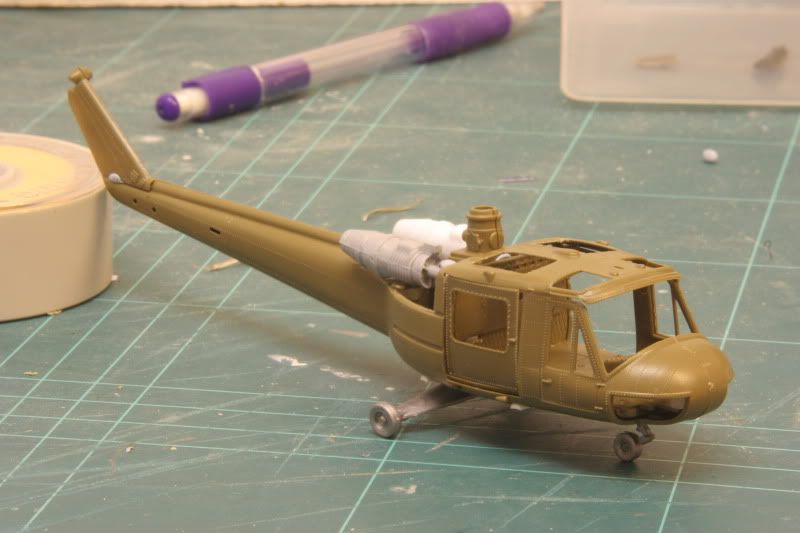

Okay, done some actual work on this, to the point where I have a mock-up. The fuselage is actually glued together, but it's okay because the roof is separate, so I can paint the interior as I go along.



The doors will fit FLUSH (i.e. better than the one in the pic), and will split horizontally rather than slide. Next, it needs an engine deck: since I bought it, I've realised that the new HobbyBoss one actually has an engine deck in the kit, so I could have saved myself a whole heap of effort...... :rolleyes: Mind you, the plastic is nice and soft on this Italieri one, which is good when cutting tiny bits off the fragile struts and frames.
