Supermarine Type 391

Started by GTX, December 31, 2007, 10:19:30 PM

Previous topic - Next topic

GTX

Hi folks,

Has anyone ever modelled a Supermarine Type 391?





Regards,

Greg
All hail the God of Frustration!!!

Daryl J.

What a beautiful machine!!!!!


Daryl J.

Jennings

Never seen that one before!  What a beauty!  What are the lumps on either side of the cowling though?

J
"My fellow Americans, our long national nightmare is over." - Gerald R. Ford, 9 Aug 1974

upnorth

QuoteNever seen that one before!  What a beauty!  What are the lumps on either side of the cowling though?

J
Depending on what powers the thing, those may just be blisters to accomodate rocker covers or some other engine part, the nose does look pretty narrow so I don't think that's unplausible.

Definitely a beautiful aircraft.
My Blogs:

Pickled Wings: http://pickledwings.com/

Beyond Prague: http://beyondprague.net/

gooberliberation

#4
Its powered by a RR Eagle, which would explain the location of the lumps. From what I recall of the Westland Wyvern, there should be exhaust pipes there too. Perhaps theyre tucked away into some sort of turbocharger setup?
================================
"How about this for a headline for tomorrows paper? French fries." ~~ James French, d. 1966 Executed in electric chair in Oklahoma.

The Rat

"My mind is a raging torrent, flooded with rivulets of thought, cascading into a waterfall of creative alternatives." Hedley Lamarr, Blazing Saddles

Life is too short to worry about perfection

Youtube: https://tinyurl.com/46dpfdpr

Mossie

Modelling it? Hmm, the wings & tail are pretty close to a Mustang, so you could start there.  You'd have to scratch the radiators of course.  Fuse, now that's more tricky, but for one that slender you might be able to start with a Westland Whirlwind, it'd need a lot of modification.  Classic Airframes do it in 1/48 Greg.
I don't think it's nice, you laughin'. You see, my mule don't like people laughin'. He gets the crazy idea you're laughin' at him. Now if you apologize, like I know you're going to, I might convince him that you really didn't mean it.

AeroplaneDriver

That's a beauty!  That would be a sure thing for the 'Piston Perfection' GB!
So I got that going for me...which is nice....

John Howling Mouse

Funny, never heard of it but I've drawn virtually the same design before.  Cool!
Styrene in my blood and an impressive void in my cranium.

kitnut617

Considering that it was proposed to be powered by this lump:

The Rolls Royce 22 'Eagle', the fairing on the side would be to cover the heads as already mentioned above.

This photo incidently, is of a 1/5 scale fully working model of the engine and was built by Barry Hares (a Aircraft Engine Historical Society member)

Here's what the rest of it looks like:
http://www.enginehistory.org/eagle_22.htm

Robert
If I'm not building models, I'm out riding my dirtbike

John Howling Mouse

OMG, I think I'm in love!
Styrene in my blood and an impressive void in my cranium.

GTX

#11
Sorry folks,  I should have posted some more details.  As Wooksta mentioned, it is essentially a much modified Spiteful/SeaFang - see pg 30 of British Secret Projects 3: Fighters and Bombers 1935-1950.

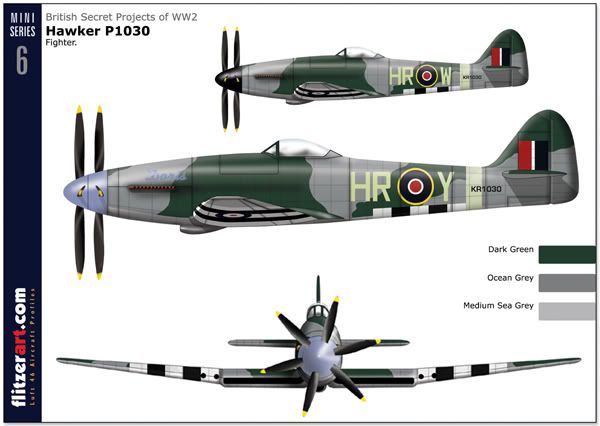

BTW, here is the similar Hawker P1030 also mentioned in that excerpt:



Regards,

Greg
All hail the God of Frustration!!!

perttime

Somebody has modeled Supermarine Type 391... as a Radio Control model.

I'm not sure what the status of the model is now but it flew OK until a minor landing mishap.

http://www.youtube.com/watch?v=6_V2HqAZzms






Flyer

#13
That's both a nice looking design and model of it.
"I'm a precisional instrument of speed and aromatics." - Tow Mater.

"People say nothing is impossible, but I do nothing all day." - A. A. Milne.

perttime

Germany wasn't the only country with some interesting ideas before the end of WW2...
