BAC Sea Canberra -- Finished

Started by buzzbomb, November 29, 2009, 10:01:12 PM

Previous topic - Next topic

buzzbomb

I have been following the VTOL Canberra build and that got me thinking
If the US can throw a 82,000 lb Douglas A3 Skywarrior off a carrier
Why couldn't the Brits throw a 56,000 lb Canberra off a Carrier ?
So I rummaged throught he stash and found the old, old, old Novo repop of the Frog B(I) 8 Canberra.. perfect :party:


So I am thinking

  • Folding Wings.. (of course)  how.. not quite sure yet, but I am sure it will come to me. Most likely similar to a Tracker fold
  • Folding Fin (Maybe)
  • longer, beefier undercart.
  • Tail bumper wheels and hook.


Besides I love the idea of this GB as Naval aircraft are a particular passion. ;D

Lets see if it works

BT ;D

PS.  I could call it the Batemans Bay.. as that the coastal town Aussie Canberra Folks head to.
But BAC Folkestone is doable as well or perhaps Brough as a nod to the Blackburn folks.

theunknownmodeler

You could do a land based Naval Canberra as well I guess. I'm looking forward to seeing the finished product, would it's role be Recce or strike? I think the wing fold would be best kept minimal the last section of the wing if that makes sense a little like the Phantom II.

Thorvic

Well the Sea Canberra was envisaged as an RN Naval Strike bomber operating from the Original CV-1952 post war carrier concept when it was originally intended to mirror the then under construction USS Forrestall in the US. These would have been the equivilant of the Savage or Skywarrior as neuclear capable strike bombers.

G
Project Cancelled SIG Secretary, specialising in post war British RN warships, RN and RAF aircraft projects. Also USN and Russian warships

Weaver

Don't see why not: the Bucc's MTO was 62,000 lb and the Phantom about the same (not sure if those are carrier MTOs though) and the Canberra's wing was relatively lightly loaded. The biggest problem would be space: Cranberries are NOT compact.

BTW, those sprues in the shot appear to be a B(I).8, not a PR.9.
"Things need not have happened to be true. Tales and dreams are the shadow-truths that will endure when mere facts are dust and ashes, and forgot."
 - Morpheus in Sandman: A Midsummer Night's Dream, by Neil Gaiman

"I dunno, I'm making this up as I go."
 - Indiana Jones '

TsrJoe

#4
iv a note of a possible RN. Canberra posted here ...

http://www.whatifmodelers.com/index.php/topic,5106.msg81690/highlight,canberra.html#msg81690

according to a note iv seen it was to have been a standard aircraft fitted with folding wings just outboard of the engines at the wing structural break point, and an arrestor hook mounted at the rear transport joint (oh and as Geoff noted above, a nuclear store too!)

cheers, joe
... 'i reject your reality and substitute my own !'

IPMS.UK. 'Project Cancelled' Special Interest Group Co-co'ordinator (see also our Project Cancelled FB.group page)
IPMS.UK. 'TSR-2 SIG.' IPMS.UK. 'What-if SIG.' (TSR.2 Research Group, Finnoscandia & WW.2.5 FB. groups)

buzzbomb

Quote from: Weaver on November 30, 2009, 01:14:57 AM

BTW, those sprues in the shot appear to be a B(I).8, not a PR.9.

Yep.. misque on the version..thanks for that.

See too easy now.... nothing to really think about all the hard work has been done by BAE/BAC/EE.
I will just cobble it up and see how it comes out although further thought and to individualise it a bit I am going with different UC config for starters and maybe some other cosmetic changes around the cockpit area





Weaver

How about putting a fighter-style canopy dead centre as far forward as possible (like the front half of a B-57 'pit) for carrier landing visability reasons, two back seaters buried in the fuselage behind, a ventral radome for a bombing radar that actually works and a periscope optical bombsight for when it doesn't?. The whole thing would be like a "mini -Vulcan" layout.
"Things need not have happened to be true. Tales and dreams are the shadow-truths that will endure when mere facts are dust and ashes, and forgot."
 - Morpheus in Sandman: A Midsummer Night's Dream, by Neil Gaiman

"I dunno, I'm making this up as I go."
 - Indiana Jones '

PR19_Kit

With big Avons, from the PR9 perhaps, you may not even need a catapult, as the Can's wings are so big. When the USN operated the TR-1 off a carrier they just opened the taps and flew away   :lol:
Kit's Rule 1 ) Any aircraft can be improved by fitting longer wings, and/or a longer fuselage
Kit's Rule 2) The backstory can always be changed to suit the model

...and I'm not a closeted 'Take That' fan, I'm a REAL fan! :)

Regards
Kit

Weaver

Quote from: PR19_Kit on November 30, 2009, 03:19:58 AM
With big Avons, from the PR9 perhaps, you may not even need a catapult, as the Can's wings are so big. When the USN operated the TR-1 off a carrier they just opened the taps and flew away   :lol:

Yes, I've often wondered what a Canberra would go like if it had the PR.9 engines and the B(I).8 wing: excrement and digging implements spring to mind........ :wacko: :wacko: :wacko:
"Things need not have happened to be true. Tales and dreams are the shadow-truths that will endure when mere facts are dust and ashes, and forgot."
 - Morpheus in Sandman: A Midsummer Night's Dream, by Neil Gaiman

"I dunno, I'm making this up as I go."
 - Indiana Jones '

TsrJoe

Q ... I've often wondered what a Canberra would go like if it had the PR.9 engines and the B(I).8 wing

that sounds a lot like the P.28 proposals put forward by BAC. Warton when the TSR.2 was cancelled, based upon the BI.8/PR.9 fuselage with the PR.9's uprated engines, its phase 3 incarnation had a cropped wing too

cheers, Joe
... 'i reject your reality and substitute my own !'

IPMS.UK. 'Project Cancelled' Special Interest Group Co-co'ordinator (see also our Project Cancelled FB.group page)
IPMS.UK. 'TSR-2 SIG.' IPMS.UK. 'What-if SIG.' (TSR.2 Research Group, Finnoscandia & WW.2.5 FB. groups)

kitnut617

Think I'm going to watch this build ---  :thumbsup:
If I'm not building models, I'm out riding my dirtbike

Jschmus

Using essentially the same idea, Jennings did a profile of a USN Canberra a few years back.

"Life isn't divided into genres. It's a horrifying, romantic, tragic, comical, science-fiction cowboy detective novel. You know, with a bit of pornography if you're lucky."-Alan Moore

Weaver

Quote from: TsrJoe on November 30, 2009, 05:11:06 AM
Q ... I've often wondered what a Canberra would go like if it had the PR.9 engines and the B(I).8 wing

that sounds a lot like the P.28 proposals put forward by BAC. Warton when the TSR.2 was cancelled, based upon the BI.8/PR.9 fuselage with the PR.9's uprated engines, its phase 3 incarnation had a cropped wing too

cheers, Joe

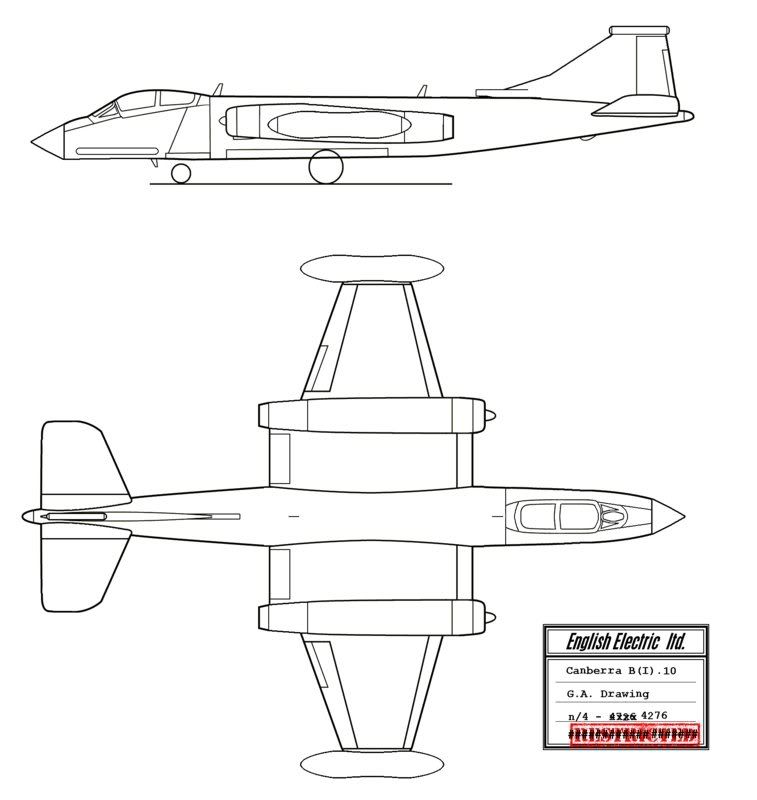

No kidding? One of the first profiles I did on here was a "super Canberra" that was more or less along those lines: PR.9 inner wing and scaled-down and much thinner outer wings.



More here: http://www.whatifmodelers.com/index.php/topic,19781.75.html
"Things need not have happened to be true. Tales and dreams are the shadow-truths that will endure when mere facts are dust and ashes, and forgot."
 - Morpheus in Sandman: A Midsummer Night's Dream, by Neil Gaiman

"I dunno, I'm making this up as I go."
 - Indiana Jones '

Captain Canada

Nice idea...looking forward to seeing some progress !

:cheers:
CANADA KICKS arse !!!!

Long Live the Commonwealth !!!
Vive les Canadiens !
Where's my beer ?

pyro-manic

Weaver - I have at least two of your Super Cranberries on the to-do list. Love it. :thumbsup:

Buzzbomb: Really looking forward to seeing what you can do with this. Keep us posted!
