Sotool, Tophe, Buzzbomb, ssb9--thanks. Be patient, I have to put this worthy project away for a while.

Meanwhile, I dredged up a graphic from which I will make a squadron emblem for "the Regatta", the moniker of the Henley squadron aboard the HMS Excalibur, and will become a decal for the Henley's side. The Henley Rowing Club will feature in the backstory (forming in my brain over the last several months).


My mind is like a compost heap: both "fertile" and "rotten"!

Offline Pablo1965

  • Needs A Life Outside What-If
  • *****
  • Posts: 1525
Re: Hawker Henley Mk IV Divebomber
« Reply #16 on: November 10, 2010, 01:49:55 pm »
I can see your evil intention Woahahahaha! Sorry love dramatism. I like it :thumbsup:  :cheers: :bow:

Offline sequoiaranger

  • Gone but not Forgotten
  • Needs A Life Outside What-If
  • **********
  • Posts: 2363
  • Old Fart with too much time on his hands!
Some Progress
« Reply #17 on: November 14, 2010, 05:10:41 pm »
I worked on the Henley today, after last night's large social gathering for which we had been planning all week (keeping me away from the Henley). I had searched for a decent tailplane, rejecting dozens. I wanted it slightly larger than the Tempest's, but the same shape. I just HAPPENED to open a He-111 box that contained (I had forgotten) parts of a 1/48 Fw-190. VOILA! I had to round off and butt-joint the tailplanes, but have reinforced them with tiny steel tubing. The two parts don't match up perfectly, but the separation line will be under the vertical stab. The white plastic Henley vac-form vertical stabilizer is washed out from the camera flash, but I reinforced the future assembly with some tabs and extra structure. I widened the Heller Tempest forward fuselage a bit to mate up with the Revell rear fuselage, and reamed out the turret opening. The over-and-under Lewis guns were much more difficult to arrange than I thought, but...I did it. The canopy was cut to "hood" the turret. I needed to engineer a different prop/boss setup so that the prop can stay off the model until after painting, yet still turn.



This next photo shows what I used to make a bomb crutch to throw the bomb clear of the propeller. The bomb was so large (will be a 1900 lb AP, but was a 1/32 100-lb bomb, I think) that a Stuka or Dauntless crutch wasn't nearly big enough. I had to resort to....a Halifax landing gear (!-on right) and shave it down a bit to make it work.

« Last Edit: November 14, 2010, 05:18:58 pm by sequoiaranger »
My mind is like a compost heap: both "fertile" and "rotten"!

Offline Pablo1965

  • Needs A Life Outside What-If
  • *****
  • Posts: 1525
Re: Hawker Henley Mk IV Divebomber
« Reply #18 on: November 14, 2010, 06:39:04 pm »
I see your way...Good luck :thumbsup:

Offline James

  • Full scale Arrow in basement
  • *****
  • Posts: 995
  • Long live the Kingdom of Yorkshire
Re: Hawker Henley Mk IV Divebomber
« Reply #19 on: November 15, 2010, 03:09:28 am »
I'll be keeping an eye on this one.  :thumbsup:

Offline sequoiaranger

  • Gone but not Forgotten
  • Needs A Life Outside What-If
  • **********
  • Posts: 2363
  • Old Fart with too much time on his hands!
Pignose, Dualies, and Car Doors
« Reply #20 on: November 15, 2010, 01:28:40 pm »
Progressing rapidly (comparatively), I have added some features to the forward fuselage.

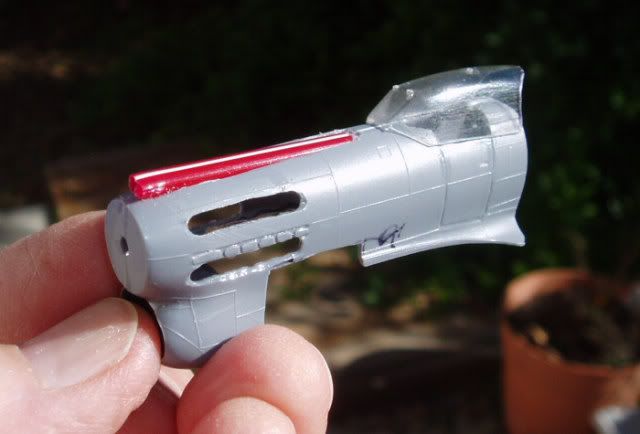

I wanted the "car door" look of the early Typhoons, but the aftermarket kits from Ventura are prohibitively expensive. I had thought of vac-forming some of the fuselage and attaching a canopy piece, and having the "car door" slightly ajar to "show off" the car door, but I have so many "issues" right there with trying to match up different fuselages, wing parts, and cockpit parts, that instead I have gouged out a "doorframe" and handle to give it the look without the work (heh, heh!). I may change the camo on the door slightly, as if it were a replacement off a different Henley, and to bring attention to that detail.

I wanted the early Tornado dorsal carburetor look, so I found a double-barrel stirring straw for a "pig-nose" double intake.

The "dual exhaust" holes for the two rows of Hurricane "horn" exhausts are evident--I need to putty and obliterate the old exhaust area.

« Last Edit: November 15, 2010, 02:08:15 pm by sequoiaranger »
My mind is like a compost heap: both "fertile" and "rotten"!

Offline Mossie

  • Twiglet doctor
  • What-IF SIG
  • Needs A Life Outside What-If
  • *****
  • Posts: 14124
  • Don't laugh at his mule
Re: Hawker Henley Mk IV Divebomber
« Reply #21 on: November 15, 2010, 03:34:31 pm »
Enjoying this progress.  For the car door, would it be possible to persuade the forward portion of a P-39 or P-63 canopy to fit?
I don't think it's nice, you laughin'. You see, my mule don't like people laughin'. He gets the crazy idea you're laughin' at him. Now if you apologize, like I know you're going to, I might convince him that you really didn't mean it.

Offline sequoiaranger

  • Gone but not Forgotten
  • Needs A Life Outside What-If
  • **********
  • Posts: 2363
  • Old Fart with too much time on his hands!
Different Cars, Different Doors
« Reply #22 on: November 15, 2010, 05:17:15 pm »
>For the car door, would it be possible to persuade the forward portion of a P-39 or P-63 canopy to fit?<

The P-39 not only has a curved clear piece front-to-back, but the entire door is relatively uniformly curved, like a parenthesis....(  The Hawker "car doors" are shaped more like the Spanish pre-question mark, that is, a straight and squarish window panel (clear) on top of a curvy door.... Shown below is a photo and drawing of the "car-door" Typhoon. I now see that the "door" is very short, that is, it does not go all the way down to the floor of the cockpit. More like the flaps on Hurricane and Spitfire cockpits, but with some of the canopy window attached. The one on my Henley is going all the way down. Hmmm.



>Enjoying this progress.<

So am I! This project is complex enough to test and challenge my skills, but I am enjoying the progress, too!
I have the tail (vertical and horizontals) on, and am now turning to the wings. The complexity here is that a mating of the Heller Tempest and Hurricane wings is fairly straight-forward *IF* I didn't want to show off some hole-ly dive brakes a la Douglas Dauntless (or Brewster Buccaneer, where they came from, and, incidentally fit the Henley to a "T"). Substituting the holed flaps means having to add structure to the center inside of the wing to keep the proper thickness during the substitution. Too bad, because the Hurri and Tempy's wings go together so nicely!


My mind is like a compost heap: both "fertile" and "rotten"!

Offline sequoiaranger

  • Gone but not Forgotten
  • Needs A Life Outside What-If
  • **********
  • Posts: 2363
  • Old Fart with too much time on his hands!
Henley Divebrakes
« Reply #23 on: November 16, 2010, 08:42:59 am »
In one of those RARE instances of whiffery, the divebrakes were EASIER to make and install than I had thought. I found I did not need to make inner wing structure to keep the airfoil, as I had previously feared, and the thickness of the dive brakes corresponded EXACTLY to the place they would occupy. WHEW! The dive brakes come from the injection-molded Brewster Buccaneer (expensive kit, and merely parted out for other models!). I carefully cut out sections in the Henley wing, then cut and matched the Buccaneer pieces to fit. In the pic below, I pasted the new look onto an older photo. On the left, of course, are the dive brakes mounted in the wing. The inner dive brakes are "half" flaps (no holes in the wing above it), and will be mounted dropped down on the finished model. the outer flaps are presumably the "butterfly" type (holes top and bottom, split, top half opening upwards, the bottom half opening downwards). I'm also going to have only one 20mm per wing.

I included the tail assembly so you can see the hodge-podge of color--white for vac-form Henley, light greenish for the modified 1/48 Fw-190 horizontal tailplanes, and the dark gray-green of the Revell Tempest fuselage. Still a lot of work to blend everything together and shape it properly, though (ain't there ALWAYS!?).

« Last Edit: November 16, 2010, 08:51:55 am by sequoiaranger »
My mind is like a compost heap: both "fertile" and "rotten"!

Offline Pablo1965

  • Needs A Life Outside What-If
  • *****
  • Posts: 1525
Re: Hawker Henley Mk IV Divebomber
« Reply #24 on: November 16, 2010, 01:27:40 pm »
Good idea! Dauntless style flaps.  cool  :ph34r: :ph34r: :ph34r: :ph34r: :ph34r:

Offline sequoiaranger

  • Gone but not Forgotten
  • Needs A Life Outside What-If
  • **********
  • Posts: 2363
  • Old Fart with too much time on his hands!
Mocking-up the Henley
« Reply #25 on: November 17, 2010, 02:34:03 pm »

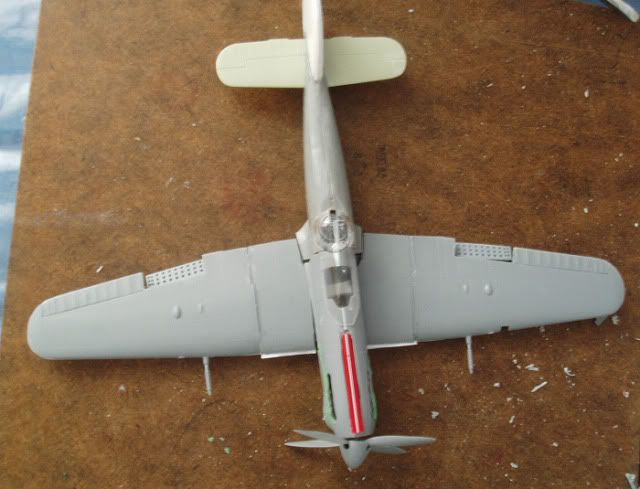

Here's the Henley a little farther along. I got all the parts of the wings mated (no small task), and worked on the "gap" behind the original Heller Tempest coolant radiator (added Revell's) and how the turret well matches up with the wing beneath it. I had added white sheet plastic spacers to the thin Tempest inner wing to match up to the Hurricane outer (and Henley) airfoils, and now am considering making the protrusions wing-leading-edge oil coolers (as seen on later Hawker products, and already on Mossies and Whirlwinds). I have kept design elements of the Hawker line of products, more or less substituting available injection-molded products for the cumbersome vac-form that would have been the Formaplane Henley. I still have some issues with the underside fuselage, and may add a top fuselage strake to the tail, kind of like the Aichi D3A (Val). Maybe.
