Author Topic: Boulton Paul Defiant  (Read 27650 times)

0 Members and 2 Guests are viewing this topic.

Online rickshaw

  • Needs A Life Outside What-If
  • *****
  • Posts: 10460
Re: Boulton Paul Defiant
« Reply #60 on: January 09, 2011, 05:28:22 pm »
Greg, interesting drawings.  Obviously it was possible to replace the outer wing tank with two MGs if that drawing is to be believed.  I could though, foresee handling problems with the ammunition having to be outboard in the next section and you might have problems putting the plumbing through the gun compartment or the ammunition compartment for a drop tank.  Never a good idea to mix ammunition and fuel.

The fairing around the cannons on the rear decking is interesting though.  Obviously there was some drag there which necessitated it.  That turret must have have interesting effects on the streamlining.
How to reduce carbon emissions - Tip #1 - Walk to the Bar for drinks.

Online rickshaw

  • Needs A Life Outside What-If
  • *****
  • Posts: 10460
Re: Boulton Paul Defiant
« Reply #61 on: January 12, 2011, 05:43:36 pm »
Browning .50s were a rare weapon in RAF service until about 1943, Apophenia.  I'd expect them to be .303in.  You also have to fit the ammunition feed and supply in the wing as well.  .50in might be a bit big and heavy for that (that far outboard).
How to reduce carbon emissions - Tip #1 - Walk to the Bar for drinks.

Offline Old Wombat

  • Needs A Life Outside What-If
  • *****
  • Posts: 8909
  • Armour: The Gods of War love it!
Re: Boulton Paul Defiant
« Reply #62 on: January 12, 2011, 06:07:33 pm »
From memory (I'm too lazy to check on the web), actual wartime R&D tried to fit an extra 2 wing guns but this severely reduced the plane's fuel load &, therefore, loiter time (as a night-fighter).
Has a life outside of What-If & wishes it would stop interfering!

"The purpose of all War is Peace" - St. Augustine

veritas ad mortus veritas est

Offline GTX

  • Beyond The Sprues Guy
  • What-IF SIG
  • Needs A Life Outside What-If
  • *****
  • Posts: 10817
  • "Princess"
    • www.beyondthesprues.com/Forum
Re: Boulton Paul Defiant
« Reply #63 on: January 12, 2011, 11:56:22 pm »
I was thinking of this Sea Defiant entering service around the same ime as the RW Blackburn Roc - 1939.  Therefore I am tending toward twin 303s in the outer wings.  Not saying it would bave been the most stellar of armaments/performers, but it would have been better than the Roc IMHO.  My scenario is that Boulton Paul beat Blackburn and thus you get the Sea Defiant.  Range is affected, but as I have said above, I am planning on (and in fact have already purchased) adding a couple of drop tanks (similar to those from the Hurricane) to help make up the lost fuel.

I just want to see a folded wing Defiant in this sort of scheme:



 ;D

Regards,

Greg
« Last Edit: January 13, 2011, 01:28:33 pm by GTX »
All hail the God of Frustration!!!

Online rickshaw

  • Needs A Life Outside What-If
  • *****
  • Posts: 10460
Re: Boulton Paul Defiant
« Reply #64 on: January 13, 2011, 01:12:44 am »
I was thinking, why not just substitute a Hurricane or even a Fulmar wing for the Defiant wing?  That way you'd get your MGs and still retain the wing tanks/range.
How to reduce carbon emissions - Tip #1 - Walk to the Bar for drinks.

Offline GTX

  • Beyond The Sprues Guy
  • What-IF SIG
  • Needs A Life Outside What-If
  • *****
  • Posts: 10817
  • "Princess"
    • www.beyondthesprues.com/Forum
Re: Boulton Paul Defiant
« Reply #65 on: January 13, 2011, 01:26:23 am »
I was thinking, why not just substitute a Hurricane or even a Fulmar wing for the Defiant wing?  That way you'd get your MGs and still retain the wing tanks/range.

Err, because I will have a Defiant ...

Regards,

Greg
All hail the God of Frustration!!!

Online rickshaw

  • Needs A Life Outside What-If
  • *****
  • Posts: 10460
Re: Boulton Paul Defiant
« Reply #66 on: January 13, 2011, 02:13:42 am »
I was thinking, why not just substitute a Hurricane or even a Fulmar wing for the Defiant wing?  That way you'd get your MGs and still retain the wing tanks/range.

Err, because I will have a Defiant ...

Regards,

Greg

Such a lack of imagination, Greg...   ;D
How to reduce carbon emissions - Tip #1 - Walk to the Bar for drinks.

Offline tomo pauk

  • Kitbasher
  • ***
  • Posts: 153
Re: Boulton Paul Defiant
« Reply #67 on: May 05, 2011, 12:36:38 pm »
The Double Defiant, here as 3-seater night fighter. Note the radiators moved in front of leading edge. RAF's 'P-38' perhaps, as a 'normal' fighter-bomber, until/unless we field double Hurricane or Spitfire.

« Last Edit: May 05, 2011, 01:03:28 pm by tomo pauk »

Offline tomo pauk

  • Kitbasher
  • ***
  • Posts: 153
Re: Boulton Paul Defiant
« Reply #68 on: May 05, 2011, 01:11:24 pm »
Played a little with Greg's profile, to create a long range fighter. Cockpit is moved back, to create room for a fuel tank more or less around the center of gravity (akin to most of the Spits, or F4U). The later version features bubble top. The aerial can be moved up, of course, and the radiator(s) to the leading edge.


Offline GTX

  • Beyond The Sprues Guy
  • What-IF SIG
  • Needs A Life Outside What-If
  • *****
  • Posts: 10817
  • "Princess"
    • www.beyondthesprues.com/Forum
Re: Boulton Paul Defiant
« Reply #69 on: May 05, 2011, 01:21:38 pm »
 :thumbsup:
All hail the God of Frustration!!!

Offline Gondor

  • What-IF SIG
  • Needs A Life Outside What-If
  • *****
  • Posts: 7306
  • Builds Slower Than A Glacier Moves
Re: Boulton Paul Defiant
« Reply #70 on: May 05, 2011, 02:16:12 pm »
Nice, certainly one to get the punters scratching their heads at, especially the lower of the two single seater's  :thumbsup:

Gondor
My Ability to Imagine is only exceeded by my Imagined Abilities

Offline pyro-manic

  • Needs A Life Outside What-If
  • *****
  • Posts: 5720
  • Master Procrastinator
    • Me on Flickr
Re: Boulton Paul Defiant
« Reply #71 on: May 05, 2011, 03:52:08 pm »
I do like that. What about a "long" Merlin or Griffon (cowling from Spitfire) for a later version?
Some of my models can be found on my Flickr album >>>HERE<<<

Offline tomo pauk

  • Kitbasher
  • ***
  • Posts: 153
Re: Boulton Paul Defiant
« Reply #72 on: May 06, 2011, 09:30:33 am »
Sabre comes to mind, too. 2100+ HP, reliable & available in 1943.
Naturally, with wing leading edge radiators, like post-war Tempest prototypes carried, or as Firefly Mk. IV.

Offline ysi_maniac

  • Kit Surgeon First Class
  • Needs A Life Outside What-If
  • *****
  • Posts: 6188
Re: Boulton Paul Defiant
« Reply #73 on: June 01, 2012, 10:54:29 am »
Played a little with Greg's profile, to create a long range fighter. Cockpit is moved back, to create room for a fuel tank more or less around the center of gravity (akin to most of the Spits, or F4U). The later version features bubble top. The aerial can be moved up, of course, and the radiator(s) to the leading edge.



Love that bobble top!
Will die without understanding this world.

Offline ysi_maniac

  • Kit Surgeon First Class
  • Needs A Life Outside What-If
  • *****
  • Posts: 6188
Re: Boulton Paul Defiant
« Reply #74 on: June 01, 2012, 10:56:34 am »

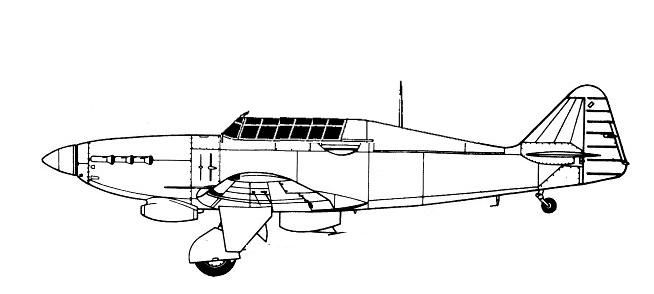

My contribution: liaison version

Will die without understanding this world.
