Yak-26 "Firedrake"

Started by JayBee, February 16, 2017, 08:46:50 AM

Previous topic - Next topic

JayBee

The Yak-26 "Firedrake" was the Soviet Union's response to the high altitude overflights by western reconnaissance aircraft.
Essentially it was a fighter development of the Yak-25/26 "Mandrake".
To keep the aircrafts weight down, and therefore not compromise it's height capability, it was not radar equipped but relied on the aircraft's optical sensors and ground based radar interception.
It was equipped with IR seeking missiles. Two medium range AA-10 Alamo D and two short range AA-11 Archer missiles.
There are no records of any successful kills, but certain sources believe that the famous downing of Garry Powers U-2 was achieved by one of these aircraft and not by SA-2 missiles as is generally believed.


The basis for this build is the A Model Yak-25 Mandrake.

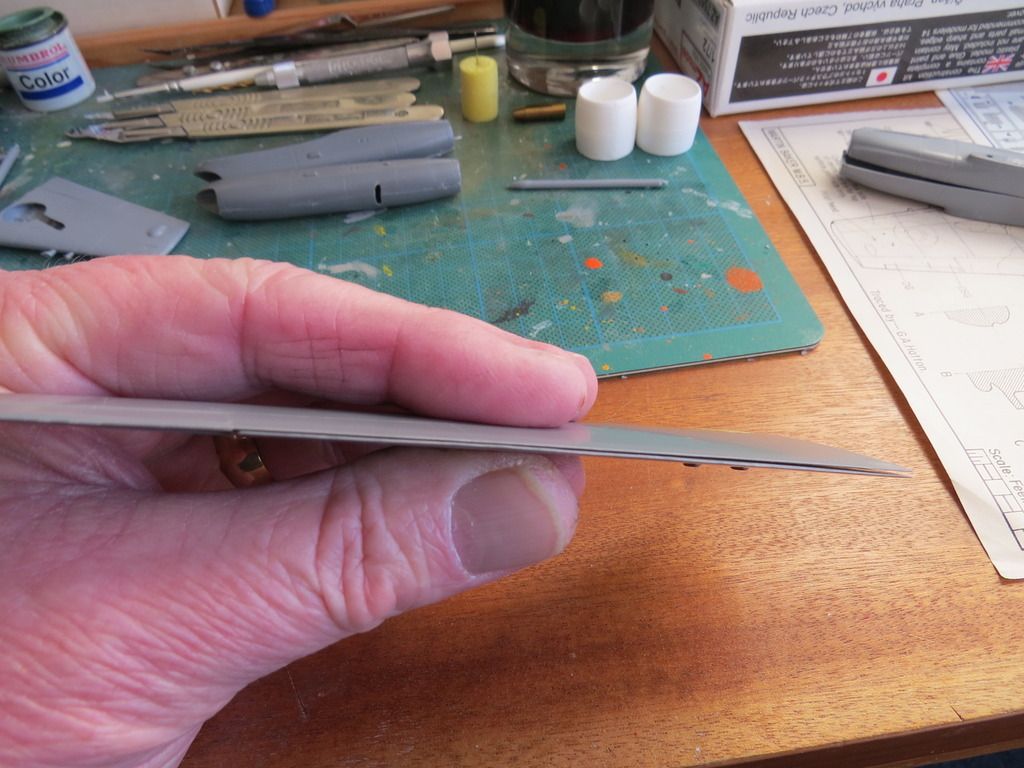

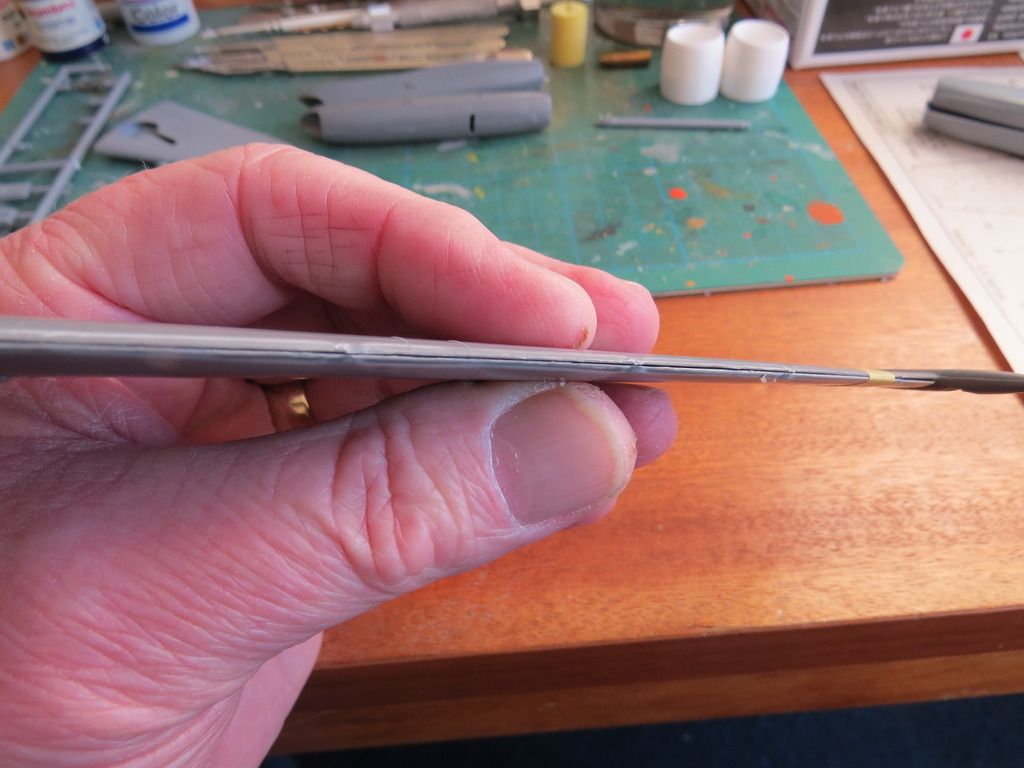

Right at the beginning of the build a problem has arisen with the kit, the wings. The upper and lower surfaces do not fit together very well in that there are serious gaps between the upper and lower surfaces at the leading edge and trailing edge.









I have already decided how I am going to tackle this. This is not to be a model to serious competition standard, in fact it is a WhatIf, so I am just going to squidge some filler into the gaps, tidy them up a bit, and Hey Presto!
Alle kunst ist umsunst wenn ein engel auf das zundloch brunzt!!

Sic biscuitus disintegratum!

Cats are not real.
They are just physical manifestations of collisions between enigma & conundrum particles.

Any aircraft can be improved by giving it a SHARKMOUTH!

Dizzyfugu


kerick

Is there something protruding up like a mold defect? Doesn't take much of a high spot to produce a gap.
" Somewhere, between half true, and completely crazy, is a rainbow of nice colours "
Tophe the Wise

PR19_Kit

If JayBee's Mandrake is anything like mine the wing moulding itself is warped chordwise and convexly, so the LE and TE have no chance of meeting each other.

I never finished mine (Wow, what a surprise....) but I think I did the 'hot water and bending' trick to sort it out. A Model's styrene seems quite amenable to such treatment I'm pleased to say.
Kit's Rule 1 ) Any aircraft can be improved by fitting longer wings, and/or a longer fuselage
Kit's Rule 2) The backstory can always be changed to suit the model

...and I'm not a closeted 'Take That' fan, I'm a REAL fan! :)

Regards
Kit

Librarian

Hope this works out as this family of aircraft are absolutely up there within the all-time faves...been waiting yonks for the Bobcat Models 1/48 Yak-28P :banghead: That will be a definite 'real' build for me.

Kudos for picking up an A Model kit...good luck :thumbsup:

JayBee

For Kit's benefit the wings in my model are pretty straight. It is just the design of the mould that is the cause of the problem.
If anyone wants to make an accurate model of a Mandrake they have quite a job on their hands.

I also forgot to say that Firedrake is a medieval name for a fire breathing dragon, Rather appropriate I think.

Jim
Alle kunst ist umsunst wenn ein engel auf das zundloch brunzt!!

Sic biscuitus disintegratum!

Cats are not real.
They are just physical manifestations of collisions between enigma & conundrum particles.

Any aircraft can be improved by giving it a SHARKMOUTH!

PR19_Kit

I've just noticed the wing in the background of your pics Jim the ones with the characteristic aileron linkage bulge.  ;)

These MB5s are becoming ubiquitous.  ;D
Kit's Rule 1 ) Any aircraft can be improved by fitting longer wings, and/or a longer fuselage
Kit's Rule 2) The backstory can always be changed to suit the model

...and I'm not a closeted 'Take That' fan, I'm a REAL fan! :)

Regards
Kit

Snowtrooper

Quote from: JayBee on February 16, 2017, 08:46:50 AM
It was equipped with IR seeking missiles. Two medium range AA-10 Alamo D and two short range AA-11 Archer missiles.
There are no records of any successful kills, but certain sources believe that the famous downing of Garry Powers U-2 was achieved by one of these aircraft and not by SA-2 missiles as is generally believed.
So it came with a time machine too, or missile technology in your timeline advanced much faster than airplane design? At the time of the Powers incident (1960), the only Soviet AAM's in service were AA-1 Alkali (K-5),  AA-2 Atoll (K-13), and AA-3 Anab (R-8) - granted, the short-range AA-2 was IR homing (being a copy of Sidewinder B) and the medium-range AA-3 had a choice between IR and SARH seekers. AA-10 and AA-11 however are several generations newer 80's missiles...

Of course, in the real modelling world, the whiffery might be limited by what things you have available to put under the wings ;)

zenrat

A Model plastic is also quite soft IM(limited)E.
Fred

- Can't be bothered to do the proper research and get it right.

Another ill conceived, lazily thought out, crudely executed and badly painted piece of half arsed what-if modelling muppetry from zenrat industries.

zenrat industries:  We're everywhere...for your convenience..

JayBee

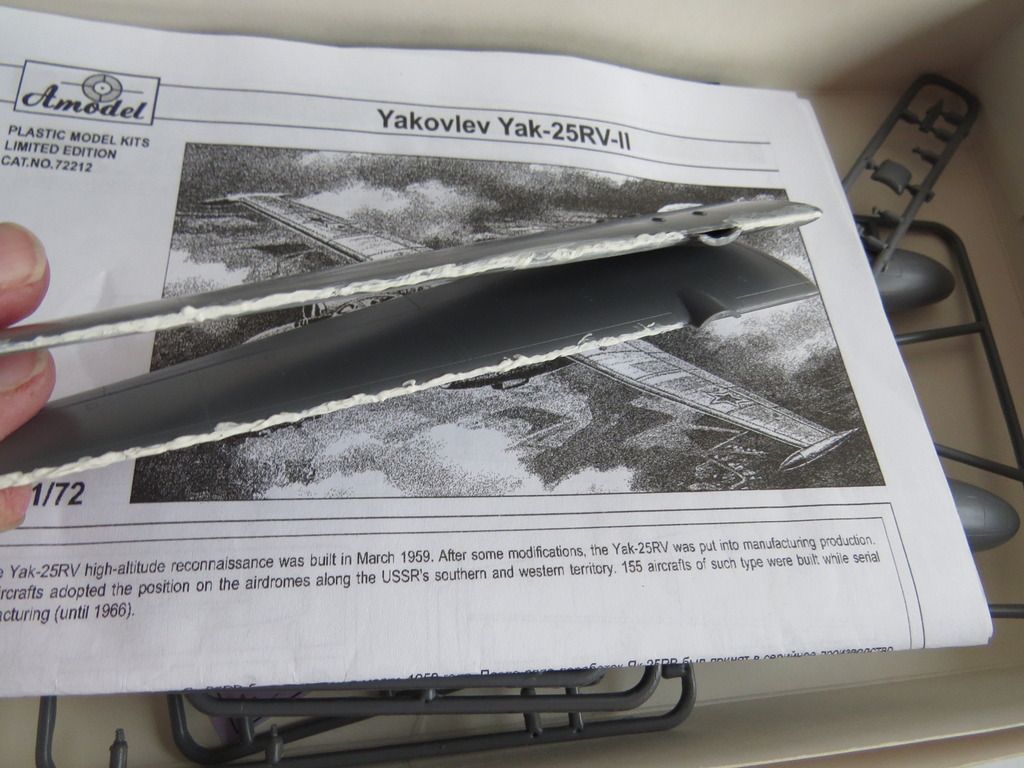

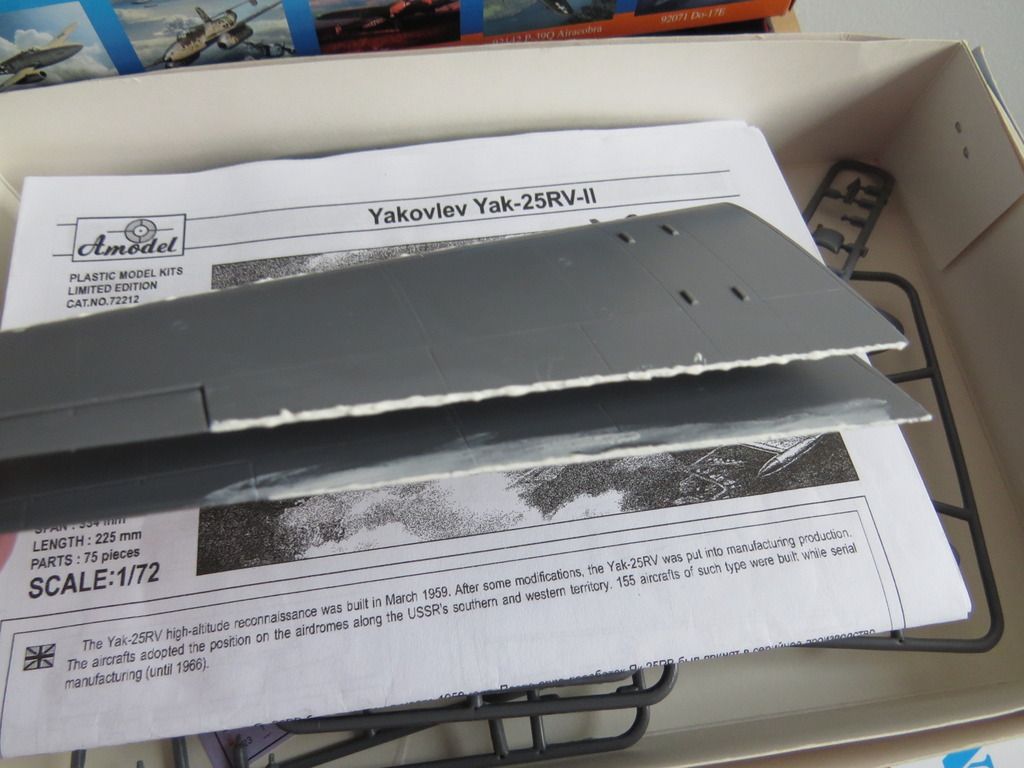

The Wing LE's and TE's have now been filled prior to PSR. For this I used Vallejo acrylic filler which comes in a tube with a wonderfully thin nozzle for applying.
